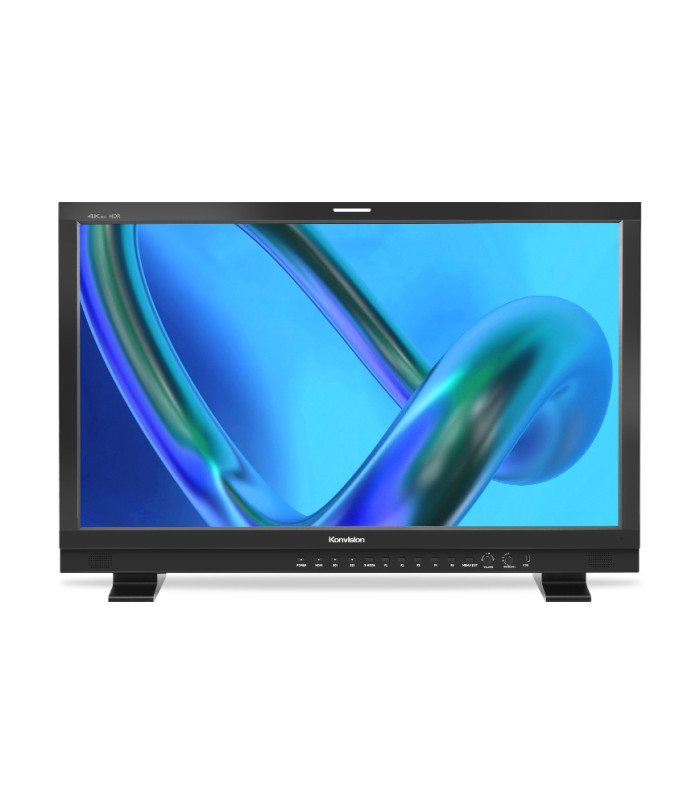

Konvision KUM-3120H - 32 Inch 4K/8K 12G-SDI HDR Monitor
En savoir plus
|
Specifications |
|
| Panel | ||
| LCD Screen | LCD | |
| Display Size | 31.5" | |
| Resolution | 3840×2160 | |
| Aspect Ratio | 16 : 9 | |
| Viewing Angle | 178°(H) / 178°(V) | |
| Color Depth | 1.07B | |
| Back Light | LED | |
| Brightness | 1000 cd/m² | |
| Contrast Ratio | 1000:1 | |
| INPUT | ||
| 4 x BNC | 12G-SDI 1/2/3/4 signal inputs (Auto-detected and compatiable to 6G/3G/HD/SD-SDI) |
|
| 1 x SDI SFP+ | SDI SFP+ module optical input | |
| 1 × HDMI 2.0(optional) | HDMI 2.0 Signal(optional) | |
| OUTPUT | ||
| 4 x BNC | 12G-SDI 1/2/3/4 signal outputs (Auto-detected and compatiable to 6G/3G/HD/SD-SDI) |
|
| Audio In / Out | ||
| SDI Audio In | 16 Channels SDI/2 embedded audio | |
| Audio Meter Display | Vertical/Horizontal Audio Level Meter Display | |
| Audio Headset Output | 3.5mm Headset Jack | |
| Built-in Speaker | 2.5W×2 | |
| GENERAL | ||
| Operating Temperature | -10°~ 50° | |
| Input Voltage | AC 100-240V 50/60Hz | |
| Power Consumption | 140 W | |
| Power-Saving Mode | Turn off unimportant key Automatically if no signal input | |
| VESA Installation | VESA MIS-D(200X200mm) | |
| Accessory | Power Cord /Desktop stand | |
-
