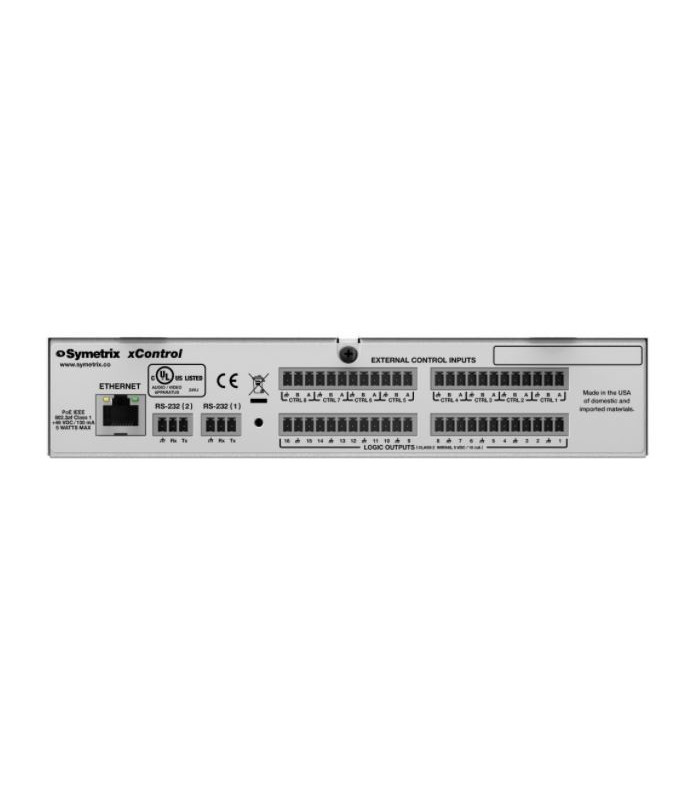

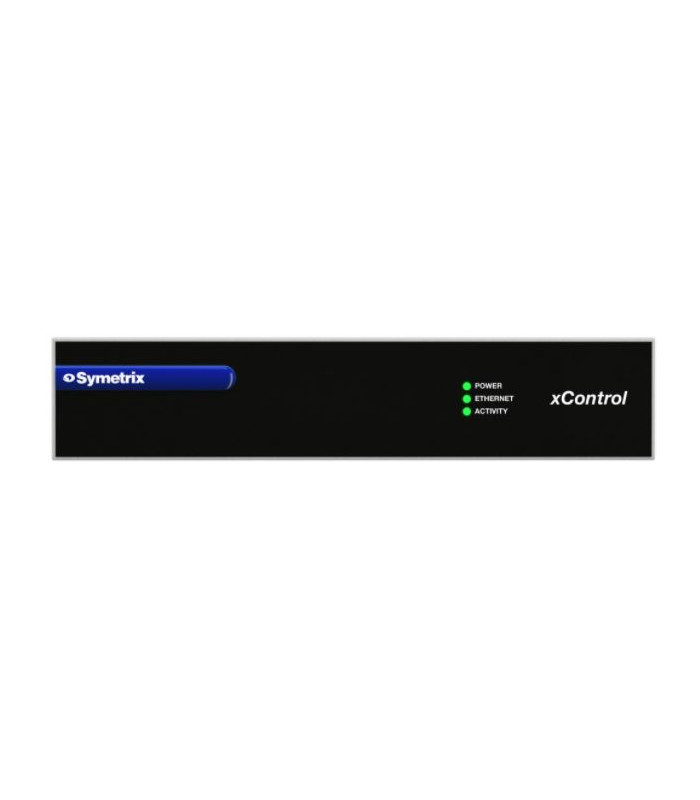

Symetrix 80-0089-C - xControl, External Control Expander
Designed for use with Radius, Prism, Edge, and Solus NX DSPs. Especially useful in conferencing and paging applications. Each of the 8 flexible analog control inputs may be configured for 1 potentiometer or 2 switches. The 16 logic outputs may be used to drive LEDs, trigger external relays, or control contact closure ports. Either of the 2 RS-232 ports may be configured to issue or receive commands to or from third-party control systems. Utilizing PoE, xControl may be mounted where convenient and connected to a control network using a single cable. The half-rack form factor conserves rack space, or if preferred, the xControl may be surface mounted at point-of-use.
Features
- Expanded External Control for Composer-enabled DSPs
- Analog / Logic Control Inputs | Logic Outputs | RS-232
- Flexible 1/2 Rack Form Factor
- Powered Via PoE (Switch or Injector)
|
Specifications |
|
External Control Inputs |
|
|
Number of External Control Inputs |
8 to 16 total; each configurable to accommodate 1 potentiometer or 2 closures for a maximum of 8 potentiometers or 16 closures |
|
Connectors |
3.81 mm terminal blocks |
|
Reference Voltage |
3.3 VDC |
|
Recommended Potentiometer |
10k Ohms linear taper |
|
Logic Outputs |
|
|
Number of Logic Outputs |
16; each capable of driving an LED directly, triggering an external relay or sinking external voltage/current. Low (0 VDC) when active, pulled high (5 VDC) when inactive |
|
Connectors |
3.81 mm terminal blocks |
|
Maximum Output Voltage |
5 VDC |
|
Maximum Output Current |
10 mA |
|
Maximum External Power Supply Voltage |
24 VDC |
|
Maximum External Power Supply Current Sinking |
50 mA |
|
RS-232 Ports |
|
|
Number of RS-232 Ports |
2 |
|
Connectors |
3.81 mm terminal blocks |
|
RS-232 Port Parameter |
57.6 kbaud (default), 8 data bits, 1 stop bit, no parity, no flow control wired straight-through, only pins 2, 3, and 5 required |
|
System |
|
|
Ethernet Cable |
Standard CAT5/6, maximum device-to-device length = 100 meters |
|
Mechanical Data |
|
|
Space Required |
Half rack unit (WDH: 20.83 cm x 22.86 cm x 4.37 cm / 8.2 in. x 9 in. x 1.72 in.) Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections |
|
Electrical |
PoE IEEE 802.3af Class 1, 6 Watts maximum. No line voltage switching required |
|
Ventilation |
Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in. minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc |
|
Certifications or Compliance |
UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS |
-
