EIZO FDF2121WT-A-GY - 1" Desktop, 2 Point LCD Touch - Grey (SAW Technology)

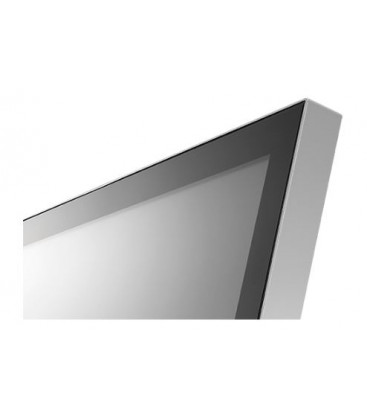

Fully Flat Design
The fully flat design enables seamless touch operation across the screen. The smooth surface allows for easy cleaning.
Touch Operation with Your Hand, Glove, or Stylus
The DuraVision FDF2121WT-A uses surface acoustic wave technology (SAW) which exhibits a higher light transmittance compared with resistive touch panels for high visibility. It supports 2-point multi-touch operation and accepts touch input even when wearing gloves, as well as from styluses. This makes it easy to use in factories, clean rooms, and public access areas.
High Visibility
The antiglare screen minimizes reflections to maintain high visibility. It is also resistant to fingerprints to ensure clear images at all times.

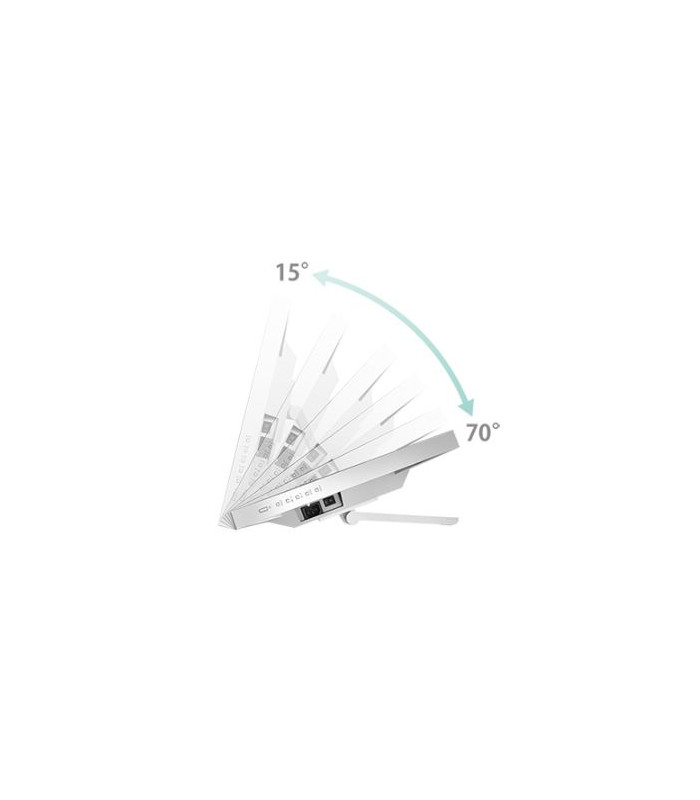

Reclining Stand
The monitor's reclining stand provides flexible positioning of the screen to the desired angle. A desktop stand with tilt is also available, as well as compliance with the VESA standard for mounting on an arm or other fixture.
Durable and Reliable
The screen has a non-scratch surface made of reinforced glass with a hardness of 7H (Mohs scale), making it durable for long-term use. The monitor can withstand temperatures ranging from 0 - 40°C.

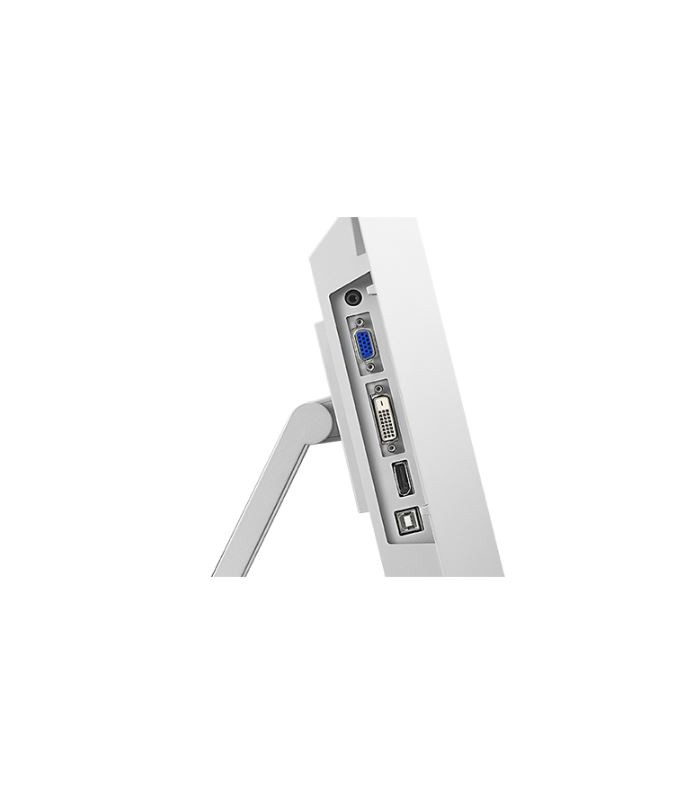

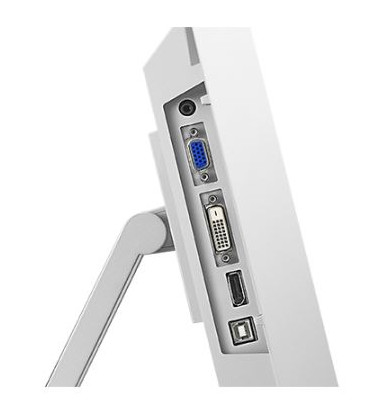

Multiple Inputs
The monitor is equipped with DisplayPort, DVI-D, and D-Sub inputs for supporting digital and analog signals. The terminals are positioned on the side of the monitor for easy access.
Touch Operation Without Additional Drivers
The multitouch interface is supported by standard Windows 10 or 8.1 drivers. You can operate the touch panel without additional drivers by simply connecting the USB cable.
Built-In Stereo Speakers
The DuraVision FDF2121WT-A comes equipped with built-in 1.0 W + 1.0 W speakers for environments which require sound output from the monitor.
|
Specifications |
|
Panel |
|
|
Type |
VA |
|
Backlight |
LED |
|
Size |
21.5" / 54.7 cm |
|
Native Resolution |
1920 x 1080 (16:9 aspect ratio) |
|
Viewable Image Size (H x V) |
476.6×268.1 mm |
|
Pixel Pitch |
0.248×0.248 mm |
|
Display Colors |
16.77 million |
|
Viewing Angles (H / V, typical) |
178°, 178° |
|
Brightness (typical) |
230 cd/m2 |
|
Contrast Ratio (typical) |
5000:1 |
|
Response Time (typical) |
25 ms (black-white-black) |
|
Touch Panel |
|
|
Type |
Surface Acoustic Wave |
|
Touch Points |
2 |
|
Surface Treatment |
Anti-Glare coating, Anti-Finger printing |
|
Communication Protocol |
USB |
|
Touch Life |
50 million touches (minimum) |
|
Surface Hardness |
7 Mohs |
|
Compatible OS |
Windows 10 / 8.1 / 7 (64-bit, 32-bit) |
|
Video Signals |
|
|
Input Terminals |
DisplayPort (HDCP1.3), DVI-D (HDCP1.4), D-Sub mini 15 pin |
|
Analog Scanning Frequency (H / V) |
31 - 81 kHz, 55 - 76 Hz |
|
Sync Formats |
Separate |
|
USB |
|
|
Upstream |
USB 2.0: Type-B |
|
Audio |
|
|
Speakers |
1.0 W + 1.0 W |
|
Input Terminals |
Stereo mini jack, DisplayPort |
|
Power |
|
|
Power Requirements |
AC 100 - 240 V, 50 / 60 Hz |
|
Typical Power Consumption |
11 W |
|
Maximum Power Consumption |
33 W |
|
Power Save Mode |
2.0 W or less |
|
Standby Mode |
0.7 W or less |
|
Features & Functions |
|
|
Preset Modes |
Color Mode (User1, User2, sRGB) |
|
OSD Languages |
English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish |
|
Others |
Screen Adjustment (Clock, Phase, Position, Range (Auto), Screen Size (full screen, enlarge, normal), Smoothing (5 stages), Border Intensity, DDC/CI, Color Adjustment (Brightness, Contrast, Gamma, Temperature, Saturation, Hue, Gain, Reset), Signal Switching, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, Adjustment Lock, Power Indicator, Reset |
|
Physical |
|
|
Dimensions (Landscape, W x H x D) |
With LaidBack stand: 533 x 139 – 347.5 x 89 – 401.5 mm |
|
Dimensions (Without Stand, W x H x D) |
533 x 326 x 54 mm |
|
Net Weight |
With LaidBack stand: 6.5 kg / 14.3 lbs With Tilt stand: 8.4 kg / 18.5 lbs |
|
Net Weight (Without Stand) |
6.0 kg / 13.2 lbs |
|
Tilt |
With LaidBack stand: 15° - 70° With Tilt stand: 30° Up, 0° Down |
|
Hole Spacing (VESA Standard) |
100 x 100 mm, M4, screw depth 3.0 - 9.5 mm |
|
Environmental Requirements |
||
Operating Temperature |
0 - 40 °C |
|
Operating Humidity (R.H., non condensing) |
20 - 90 % |
|
Certifications & Standards |
CB, CE, cTUVus, FCC-B, CAN ICES-3 (B), VCCI-B, CCC, RoHS, WEEE, China RoHS |
|
-
