86519
New

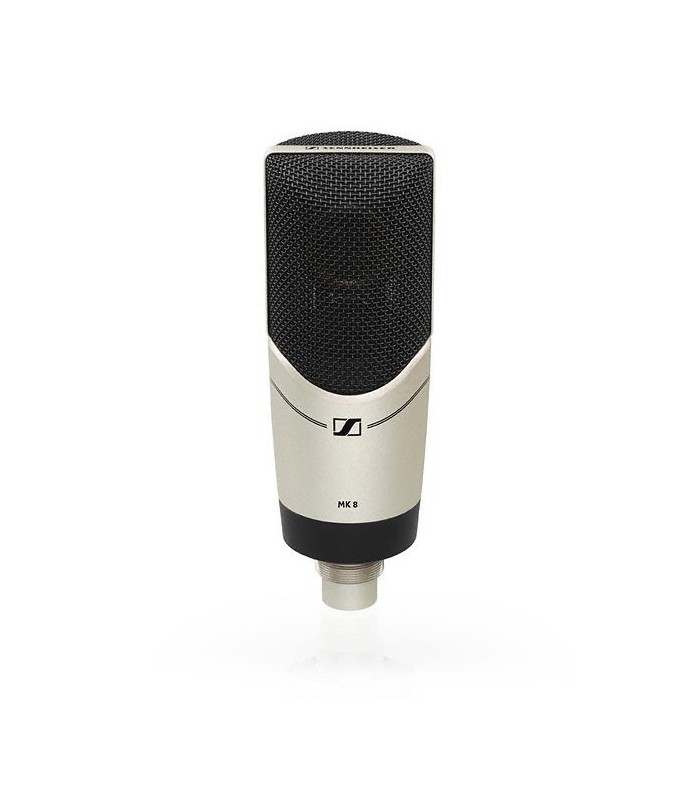

The MK 8 offers a great solution for advanced home recording applications and project studios alike.
It is the microphone for people who pour all of their passion into their audio projects.
The MK 8 offers sophisticated options to sign off your sound with your own personal handwriting.
The dual-diaphragm condenser microphone delivers warm and precise sound reproduction. Its five independent polar patters allow for a multitude of recording applications and sound design options.
No matter which mixing desk or recording device is used, the MK 8 matches the input sensitivity with a 3-step attenuator.
Two adjustable filters compensate for the proximity effect as well as low frequency rumble or structure born noise.
The MK 8 has dual one-inch diaphragms precisely spattered with 24-carat gold.
The shock-mounted capsule is accommodated within a sturdy metal housing.
The MK 8 will be available in late summer 2014.
The MK 8. Pride in Sound - Made in Germany.
Features
-Dual-diaphragm true condenser microphone
-Five switchable polar patterns
-3-position switchable low cut/roll-off filter
-3-position pad switch
-Two 24-carat gold plated 1” diaphragms
-Shock-mounted capsule
-Rugged metal housing
-Safely sheltered electronics
-Designed and made in Germany
Technical data:
Color |
||
---|---|---|
Frequency response |
20 - 20000 Hz ± 2,5 dB |
|
Weight |
0,1 g |
|
Diameter |
Ø 3,3 mm |
|
Pick-up pattern |
Omni-directional |
|
Sensitivity in free field, no load (1kHz) |
5 mV / Pa ± 2,5 dB |
|
Nominal impedance |
1000 Ω |
|
Min. terminating impedance |
4,7 kΩ |
|
Equivalent noise level |
27 dB |
|
Equivalent noise level weighted as per CCIR 468-3 |
39 dB |
|
Maximum sound pressure level (passiv) |
142 dB |
|
Operating voltage (mains) |
-4 and -4-3: through transmitters SK 5212, SK 5012, SK 250, SK 50, SK 3063; -5 and -5-3: 4,5 - 15 V |
|
Colour |
-4 et -5: black; -4-3 and -5-3: beige |
