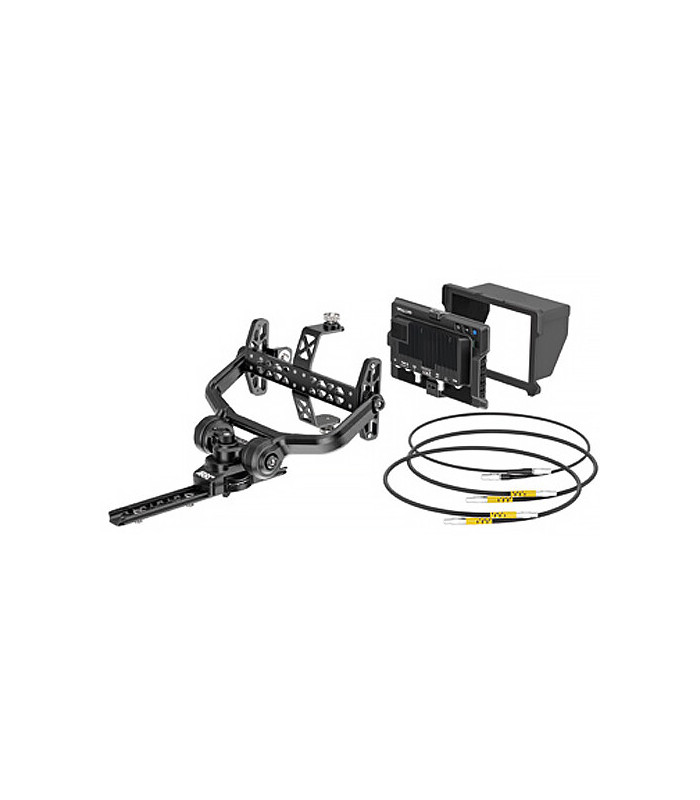

Arri KK.0051229 - CCM-1 for Live Production Set

Reference: 1072942

Condition: New

Designed for use with the ARRI ALEXA 35 Live Multi-Cam System, this CCM-1 Camera Control...

Visuals price :

7 146,75 CHF

7 725,64 CHF (tax incl.)

Guarantee: Visuals Guarantee 24 Months In-house aftersales service: update, repair and backup.

Availability:

Usually ships within 2 to 4 weeks

SKU: 1072942

More info

	Specifications
	Display
	Panel Type	TFT LCD
	Display Size	7.0" / 17.8 cm
	Screen Area	6.0 x 3.7" / 151.2 x 94.5 mm
	Native Resolution	1920 x 1200
	Aspect Ratio	0,6736111111
	Viewing Angle	Horizontal: 160° Vertical: 160°
	Touchscreen	Yes
	Maximum Brightness	1300 nits / cd/m2
	Color Support	1.07 Billion Colors (10-Bit)
	HDR Support	No
	Pixels Per Inch (ppi)	322 ppi
	Color Gamut	100% DCI-P3 100% Rec. 709
	Image Controls	False Color, Focus Peaking, Pixel Zoom
	Inputs / Outputs
	Video I/O	1x CoaXPress (Unspecified Signal) Input 1x BNC (Unspecified SDI) Input 1x BNC (Unspecified SDI) Input/Output
	Embedded Audio	SDI
	Audio I/O	1x 1/8" / 3.5 mm Output
	Built-In Speaker	No
	Power I/O	1x LEMO 3-Pin (2 A / 34 VDC) Input
	Other I/O	1x LEMO 5-Pin 1x USB-C
	Media/Memory Card Slot	No
	Wi-Fi	No
	Bluetooth	No
	Mobile App Compatible	No
	Format Support
	Video Format	SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i: 59.94 576i: 50 SDI (10/12-Bit 4:4:4 RGB) DCI 2K: 30/29.97/25/24/23.98 1080p: 30/29.97/25/24/23.98
	Gamma Curve	DCI-P3, Rec709
	Power
	Input Power	10 to 34 VDC at 2 A
	Mounting
	Mounting	4x ARRI Anti-Twist 1/4"-20
	Environmental
	Certifications	CAN ICES-003, CE, A-TICK, EN IEC, FCCClass A, UKCA
	Operating Temperature	32 to 113°F / 0 to 45°C
	Operating Humidity	0 to 95%
	Storage Temperature	0 to 120°F / -18 to 49°C
	General
	Material of Construction	Aluminum, Steel
	Dimensions	7.4 x 4.7 x 1.1" / 187 x 120 x 29 mm
	Weight	21.0 oz / 594 g
