Arri KK.0048851 - Camera Control Monitor CCM-1 Set

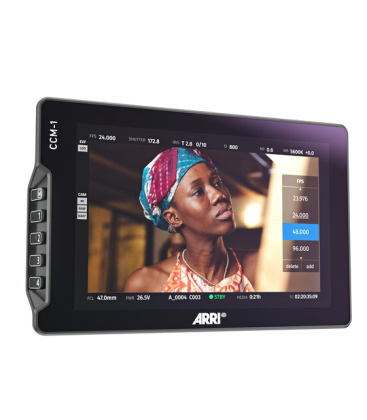

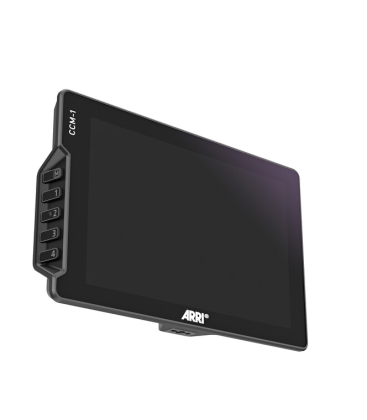

Use the compact Camera Control Monitor CCM-1 Set from ARRI to obtain both full camera control and menu access in a touchscreen display that is bright and sharp enough to use as an operating alternative to an EVF. This 7" onboard monitor features a single EVF-cable solution for imaging, control, and power for sleek rigging, BNC input and loop output, battery options, and a choice of touchscreen, side button, and joystick/button control. Display tools are based on the SmallHD monitoring tool kit familiar to many ACs and operators. This kit comprises the CCM-1 monitor, a folding sunshade, a screen protector, a tilting mount, a 1.5' VF cable, and a 1.6' RS power cable.
Full Camera Control Compatibility
The CCM-1 offers full camera control and novel viewing configurations for both the ALEXA 35 and ALEXA Mini LF digital cinema cameras. It can use the same viewfinder connector as the MVF-2 without taking up one of the camera's SDI ports, providing an alternate means of imaging, control, and menu selection, or it can be used alongside the MVF-2. The CCM-1 uses SmallHD PageOS, which enables LUTs to be added to a Page or Pages with the monitor LUT tool.
Note:Both the ALEXA 35 and Mini LF will require an upcoming firmware update to be fully functional with the CCM-1.
Bright, Accurate Display
- The CCM-1 employs a 7" IPS LCD screen to display a bright, high-contrast 1080 x 1200 HD image with ARRI-quality color accuracy and subtlety.
- Display tools like focus peaking and false color affect only the image, not the status overlays, for easy viewability.
- Sensor-level functions like zooming use the sensor resolution for improved focus checking and more.
- The CCM-1 uses SmallHD PageOS which enables LUTs to be added to a Page or Pages with the monitor LUT tool.
Status and Home Screen
- Status changes can be viewed in real time as interactive settings overlaid on the live image.
- An updated home screen displays all relevant camera information.
- Each of the five main exposure parameters can be expanded for a live preview over your image.
Camera Menu and Playback Controls
- Access all your camera settings via the touchscreen, side buttons, or rear joystick and buttons.
- Playback control has been improved with an extended clip list and both menu and user button control.
Single-Hand Control

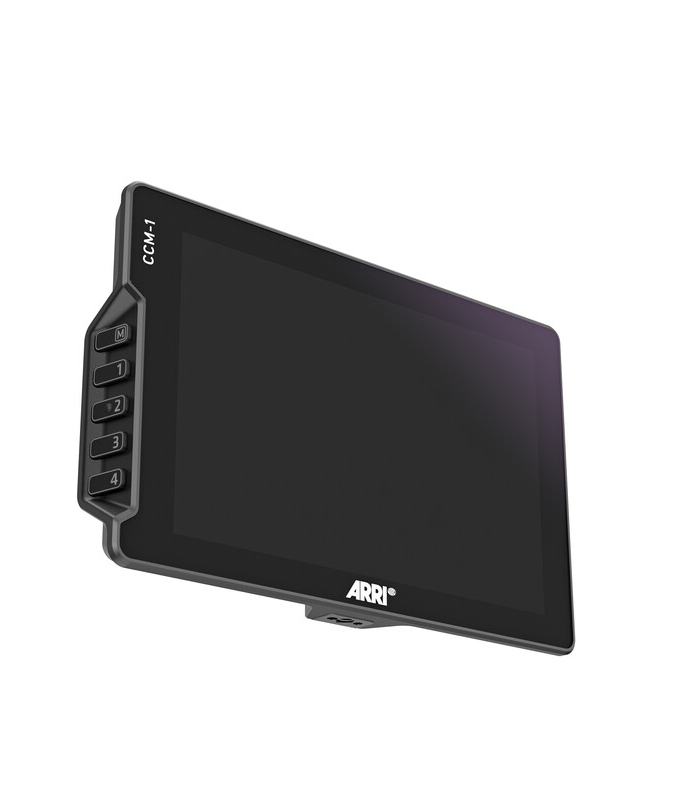

- Both the side buttons and the joystick and back buttons combination are positioned on the left side for easy, single-handed use.
- The side buttons include a dedicated Menu button and four user-assignable buttons.
Flexible Connectivity
- When used with your camera's VF connector, the CCM-1 leaves both SDI outputs free for other uses.
- The CCM-1 supports up to 33' VF cables that are ideal for distanced use for car rigs, confined spaces, cranes, and dollies.

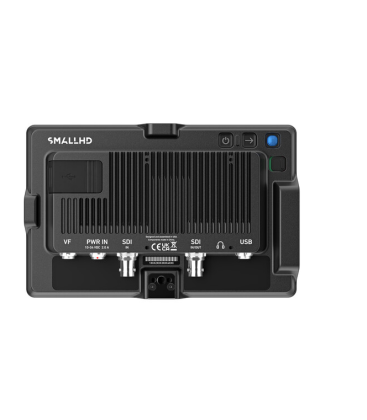

- Connect the CCM-1 via its SDI ports to enable ALF-1 and ALF-2 application, access the full SmallHD tool set, and use with third-party cameras.
Versatile Interfaces
- The 3G-SDI input and loop outputs can be used for monitoring when using a Hi-5 or other wireless controller.
- A new 5-pin LEMO USB port can be used with the upcoming USB-to-Ethernet adapter to enable ALEXA Mini LF camera control while simultaneously using an MVF-2.
- The 3.5mm TRS audio jack provides the same headphone monitoring as the MVF-2.
- A user-replaceable steel block enables you to switch out the more frequently used ports in case of excessive wear.
Brightness
- When used with a single power/image/control VF cable, the CCM-1 provides the REC 709 standard of 100 cd/m2 brightness, which is suitable for studio and interior use.
- Add a power cable with DC input or an onboard battery using a separate plate to boost the brightness to 1300 cd/m2 for outdoor viewing.
Mounting Options
- Use the separately available VFA-4 adapter to attach the CCM-1 to standard ARRI viewfinder brackets.
- Mount the CCM-1 on the included MAC-1 arm for easy, single-handed rep
|
Specifications |
|
Display |
|
|
Panel Type |
TFT LCD |
|
Display Size |
7.0" / 17.8 cm |
|
Screen Area |
6.0 x 3.7" / 151.2 x 94.5 mm |
|
Resolution |
1920 x 1200 |
|
Aspect Ratio |
16:10 |
|
Viewing Angle |
Horizontal: 160° |
|
Touchscreen |
Yes |
|
Maximum Brightness |
1300 nits / cd/m2 |
|
Bit Depth / Color Support |
10-Bit (1.07 Billion Colors) |
|
HDR Compatibility |
None |
|
Pixels Per Inch (ppi) |
322 ppi |
|
Response Time |
25 ms |
|
Color Gamut |
100% DCI-P3 |
|
Image Controls |
False Color, Focus Peaking, Pixel Zoom |
|
Inputs/Outputs |
|
|
Video I/O |
1 x CoaXPress Input |
|
Embedded Audio |
SDI |
|
Audio I/O |
1 x 1/8" / 3.5 mm Output |
|
Built-In Speaker |
None |
|
Power I/O |
1 x LEMO 3-Pin (2 A / 34 VDC) Input |
|
Other I/O |
1 x LEMO 5-Pin |
|
Media/Memory Card Slot |
None |
|
Wi-Fi |
None |
|
Bluetooth |
None |
|
Mobile App Compatible |
|
|
Format Support |
|
|
Video Format |
SDI (10-Bit 4:2:2 YCC) |
|
Gamma Curve |
DCI-P3, Rec709 |
|
Power |
|
|
DC Input Power |
10 to 34 VDC at 2 A |
|
Mounting |
|
|
Mounting |
4 x ARRI Anti-Twist 1/4"-20 |
|
Environmental |
|
|
Operating Temperature |
32 to 113°F / 0 to 45°C |
|
Operating Humidity |
0 to 95% (Non-Condensing) |
|
Storage Temperature |
0 to 120°F / -18 to 49°C |
|
Storage Humidity |
0 to 95% |
|
General |
|
|
Material of Construction |
Aluminum, Steel |
|
Dimensions |
7.4 x 4.7 x 1.1" / 187 x 120 x 29 mm |
|
Weight |
21.0 oz / 594 g |
-
