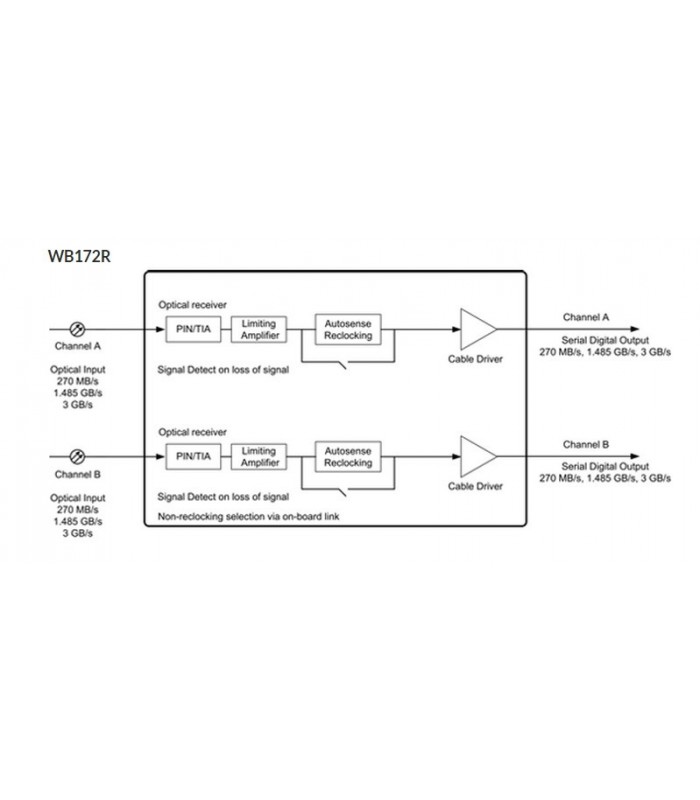

Bluebell WB172R - Singlemode Dual Channel 3G/HD/SD-SDI Fibre Optic Receiver Card

Receivers WB172R


Optical Input


- Connector

          1 x female LC as standard per channel

- Wavelength

          1270-1610 nm

- Sensitivity

          > -25.0 dBm @ 3 Gb/s

          > -25.5 dBm @ 1.485 Gb/s

          > -26.0 dBm @ 270 Mb/s

- Max I/P power

          > -1 dBm

- Data rate

           50 Mb/s to 3 Gb/s


Electrical Output


- Standards

          SMPTE 424M, SMPTE 292M, SMPTE 259M,

          SMPTE 297M, DVB-ASI

          Automatic rate selection for 3G-SDI, HD-SDI and SD-SDI data rates.

- Connector

          1 x 75 Ohm BNC per IEC 60169-8 Amendment 2 per channel
- Return Loss

          > 15 dB @ 1.485 Gb/s

- Polarity

          1 x Non inverting per channel

- Signal Level

          800 mV +/- 10%

- DC Offset

          0 +/- 0.5 V
