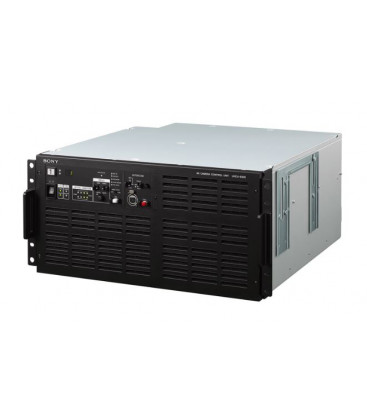

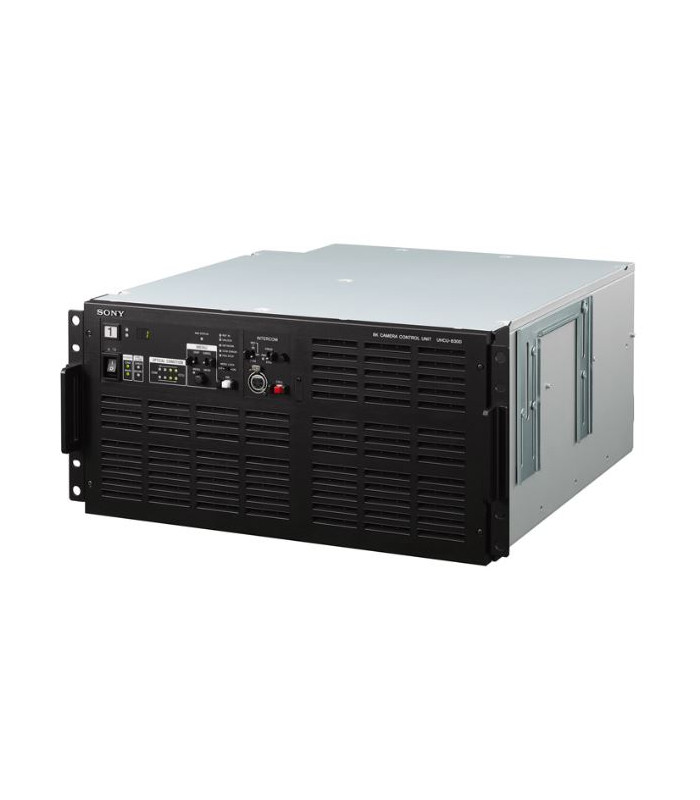

Supports 8K/4K/HD multi-format output as standard. Possible to build a system linked with a wide range of devices
From the camera control unit UHCU-8300 connected to the UHC-8300, 8K/4K/HD signals can be output at the same time, and different color gamuts and OETFs (Opto-Electronic Transfer Function) can be applied to each video signal, so 8K Simultaneous output of HDR signal, 4K HDR signal, and HD SDR signal is also possible. Also, due to the oversampling effect of 8K video, 4K/HD video can be condensed with a richer amount of information than the required number of pixels and output, enabling high-resolution video expression. It is also possible to build a system that links with 4K and HD camera systems. You can use familiar peripherals such as the remote control panel (RCP) and viewfinder in common with this product.
Equipped with various input/output interfaces

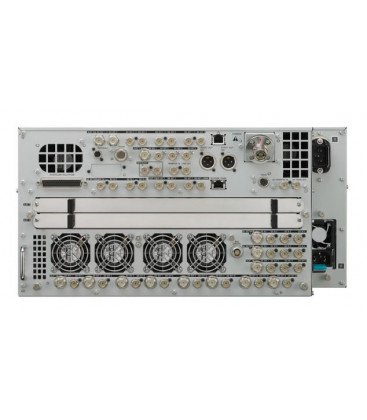

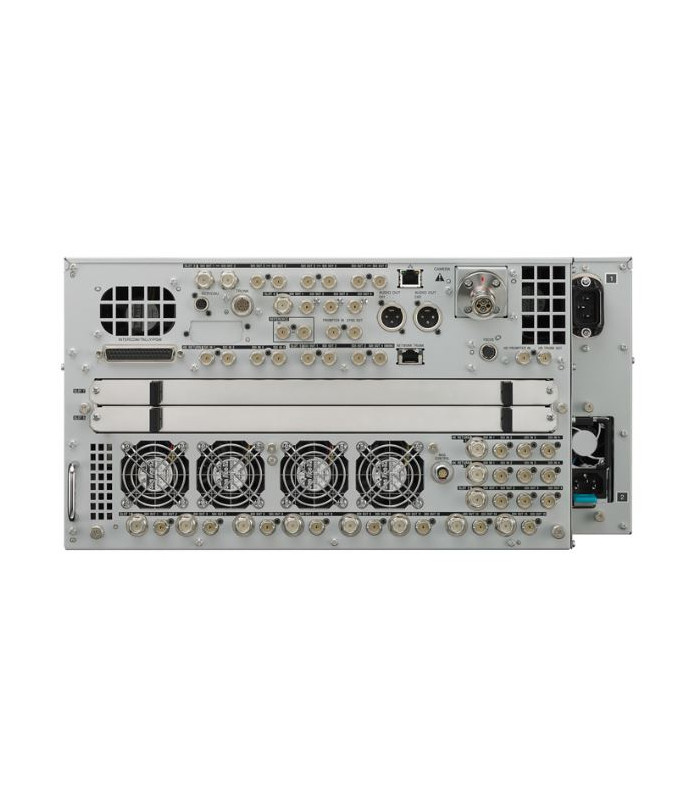

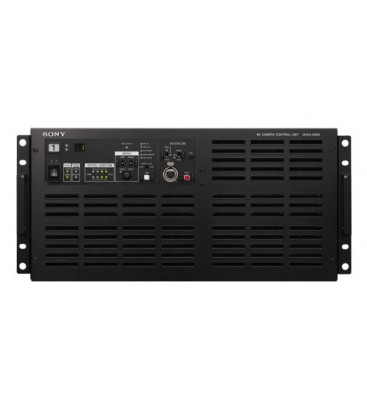

The UHCU-8300 is equipped with a wide variety of input/output terminals in addition to 8K output, so it is possible to build a system linked with a wide range of devices.
- SLOT1: 8K output (12G-SDI or 3G-SDI)
- SLOT2: 4K MAG output (12G-SDI or 3G-SDI)
- SLOT3: 4K output (12G-SDI or 3G-SDI)
- SLOT4: 4K MONITOR output (12G-SDI or 3G-SDI)
- SLOT5: HD output (3G-SDI or HD-SDI)
- SLOT6: Optional terminal (net media interface board UKCU-IP01F)
Others:
- 4K return input x 2 (12G -SDI or 3G-SDI)
Return
- input x 4 (3G-SDI or HD-SDI)
NETWORK TRUNK terminal:
- HD PROMPTER input
- HD TRUNK output
Realizes long-distance transmission
With the system of the camera head UHC-8300 and the camera control unit UHCU-8300, long-distance transmission up to approximately 1 km is possible.
Compatible with video transmission technology network media interface (developed in-house) to convert video transmission to IP
In addition to SDI transmission from the UHCU-8300 connected to the UHC-8300, it also supports 40Gb/s IP interface technology network media interface (developed in-house) that enables video transmission via network, 8K/59.94p It is also possible to transmit signals to production equipment with a single cable.
Focus control from outside is possible
Focus demand FDJ-D02 made by Canon Inc. can be connected to UHCU-8300 to control the focus from the UHCU-8300 side. To use it, set FOCUS DEMAND in the MAINTENANCE menu to ON.
|
Specifications |
|
General |
|
|
Power supply |
AC100-127V, 200-240V , 50/60Hz |
|
Current consumption |
AC IN 1: Maximum 4.0A AC IN 2: Maximum 6.2A |
|
Operating temperature |
5-40 ℃ |
|
Storage temperature |
-20- +60 ℃ |
|
Mass |
Approx. 24 kg |
|
External dimensions (width × height × depth) |
Approx. 440 × 221 × 500 mm (excluding protrusions) |
|
Input/output terminals |
|
|
CAMERA |
Optical fiber connector × 1 |
|
INTERCOM/TALLY/PGM |
D- sub 50-pin connector x 1 INTERCOM (PROD / ENG), 4W / RTS / CC, 0dBu PGM-2 strain, 0dBu / -20 dBu TALLY (R, G, Y) FLAG |
|
RCP / CNU |
8 Pinmaruchi Connector x 1 |
|
TRUNK |
12 pins x 1 |
|
LAN |
8 pins x 1 |
|
NETWORK TRUNK |
8 pins x 1 |
|
FOCUS DEMAND |
20 pins x 1 |
|
MAG CONTROL |
14 pins x 1 |
|
NMI-LAN |
QFSP+ x 2, 40G BASE-SR (by QFSP+ transceiver module) |
|
Input terminals |
|
|
AC IN |
×2, AC100 -127V, 200 -240V |
|
4K RETURN IN |
BNC ×8 12G-SDI: SMPTE ST2082-10 3G-SDI: SMPTE ST424/425-5 |
|
HD RETURN IN |
BNC × 4 3G-SDI: SMPTE ST424/425 HD-SDI: SMPTE ST292 |
|
REFERENCE |
BNC×2, loop through output HD: SMPTE ST274, tri-level sync SD: Black burst, or NTSC 10F-BB |
|
PROMPTER |
BNC×1, Loop-through output, analog signalHD PROMPTER IN: BNC x 1 |
|
Output terminals |
|
|
AUDIO OUT (CH1, CH2) |
XLR type 3-pin (convex) x 2, 0dBu/-20dBu/+4dBu |
|
SYNC |
BNC x 1, VBS, 1Vp-p, 75Ω, HD SYNC: BTA-S001, SD SYNC: Composite sync, 0.3 Vp-p, 75 Ω VBS/HD SYNC/SD SYNC switchable |
|
SDI OUT |
8K OUT (SLOT1): BNC x 16 12G-SDI: SMPTE ST2082-10/12 3G-SDI: SMPTE ST424/425/4K MAG OUT (SLOT2): BNC x 4 12G-SDI: SMPTE ST2082-10 3G-SDI: SMPTE ST424/425-5/4K OUT (SLOT3): BNC ×8 12G-SDI: SMPTE ST2082-10 3G-SDI: SMPTE ST424/425-5 4K MONITOR OUT (SLOT4): BNC ×4 12G-SDI: SMPTE ST2082-10 3G-SDI: SMPTE ST424/425-5 HD OUT (SLOT5): BNC x 4 3G-SDI: SMPTE ST424/425-1 HD-SDI: SMPTE ST292 3G-SDI/HD-SDI, character signal switchable |
-
