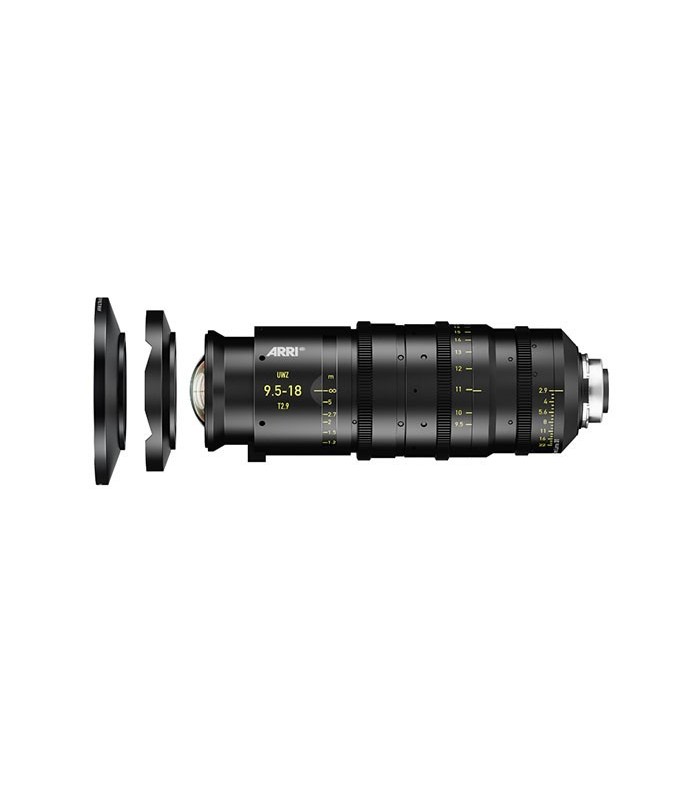

Arri Ultra Wide Zoom 9.5-18/T2.9 F

The 9.5-18mm T2.9 Ultra Wide Zoom Lens from ARRI has been designed for both current and future large-sensor HD cameras. This super-wide angle, near-telecentric zoom delivers optimal image quality, suiting it for plate shots and other VFX applications. It covers large formats up to the current ARRI Open Gate 33.6 mm image circle and is future-proofed for image circles ranging up to 34.5 mm.

The UWZ 9.5-18mm has a fixed entrance pupil position for the entire range of the zoom, and its very low distortion rate ensures straight lines even at its close focus of 21.6". Its stainless steel PL mount includes an Lens Data System (LDS) interface for transmitting the lens data key to so many FX shots. Frame illumination remains uniform to the very corners of the image, and there is virtually no breathing when focusing the lens.

A multi-layer lens coating minimizes flares and glare, helping to provide the accurate color rendition, resolution, and skin tones for which ARRI/Zeiss is known and matching other lenses in the ARRI spectrum. Additional UWZ 9.5-18mm features include focus marks in feet, an integrated support foot, a clickless aperture for smooth iris pulls, exchangeable matte box interfaces, and a 112mm-maximum barrel diameter.

Features

- Covers up to current Open Gate sensor size, future-proofing with image circle of 34.5 mm

- PL mount with LDS interface for lens data transfer

- One fixed entrance pupil over the whole zoom range and extremely low distortion, even at close focus

- Uniform illumination across the entire image frame

- Optimal image quality and color rendition match those of other ARRI/Zeiss lenses

- Virtually no breathing when focusing

	Specifications
	Angle of View	Sensor: 23.76 X 13.37 mm Image Circle: 27.26 Camera: ALEXA HD 9.5mm: V=70.3°, H=103.0°, D=110.6° 12mm: V=58.3°, H=89.5°, D=97.4° 14mm: V=51.1°, H=80.6°, D=88.5° 16mm: V=45.3°, H=73.1°, D=80.8° 18mm: V=40.8°, H=66.8°, D=74.2° Sensor: 22 X 16 mm Image Circle: 27.20 Camera: Standard 35 9.5mm: V=80.3°, H=98.6°, D=110.5° 12mm: V=67.4°, H=85.1°, D=97.3° 14mm: V=59.5°, H=76.3°, D=88.3° 16mm: V=53.1°, H=68.9°, D=80.6° 18mm: V=47.9°, H=62.8°, D=74.1° Sensor: 24 X 18 mm Image Circle: 30.00 Camera: DIN Super 35 9.5mm: V=87.0°, H=103.5°, D=115.7° 12mm: V=73.8°, H=90.1°, D=102.9° 14mm: V=65.5°, H=81.2°, D=94.0° 16mm: V=58.7°, H=73.6°, D=86.2° 18mm: V=53.1°, H=67.3°, D=79.5° Sensor: 24.9 X 18.7 mm Image Circle: 31.14 Camera: ANSI Super 35 9.5mm: V=89.2°, H=105.6°, D=117.6° 12mm: V=75.9°, H=92.2°, D=105.0° 14mm: V=67.5°, H=83.3°, D=96.1° 16mm: V=60.5°, H=75.7°, D=88.3° 18mm: V=54.9°, H=69.3°, D=81.6° Sensor: 28.25 X 18.17 mm Image Circle: 33.59 Camera: ALEXA SXT & ALEXA Mini Open Gate 9.5mm: V= 87.4°, H=112.4°, D=121.2° 12mm: V=74.2°, H=99.3°, D=109.0° 14mm: V=65.8°, H=90.3°, D=100.3° 16mm: V=59.0°, H=82.6°, D=92.5° 18mm: V=53.5°, H=76.0°, D=85.9° Entrance Pupil Position: 9.5mm: 12.22" (310.4 mm), 12mm: 12.20" (309.9 mm), 14mm: 12.18" (309.4 mm), 16mm: 12.15" (308.7 mm), 18mm: 12.13" (308.0 mm)
	Lens Mount	PL with LDS, stainless steel
	Focal Length	9.5 to 18mm
	Coverage	ARRI Open Gate
	Aperture Range	T2.9 to 22
	Close Focus	21.6" (0.55 m)
	Magnification Ratio	1:10.7
	Front Diameter	Matte Box Interfaces: 5.3" (134 mm), 6.1" (156 mm)
	Maximum Barrel Diameter	Excluding Front & Gear: 4.4" (112 mm)
	Length	Lens Mount to Front of Housing: 13.2" (335.5 mm) Including Flange Focal Distance: 15.3" (387.5 mm)
	Weight	10.6 lb (4.8 kg)
