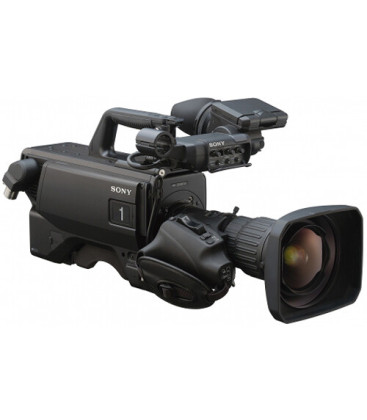

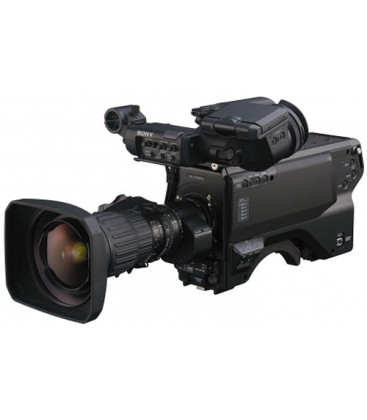

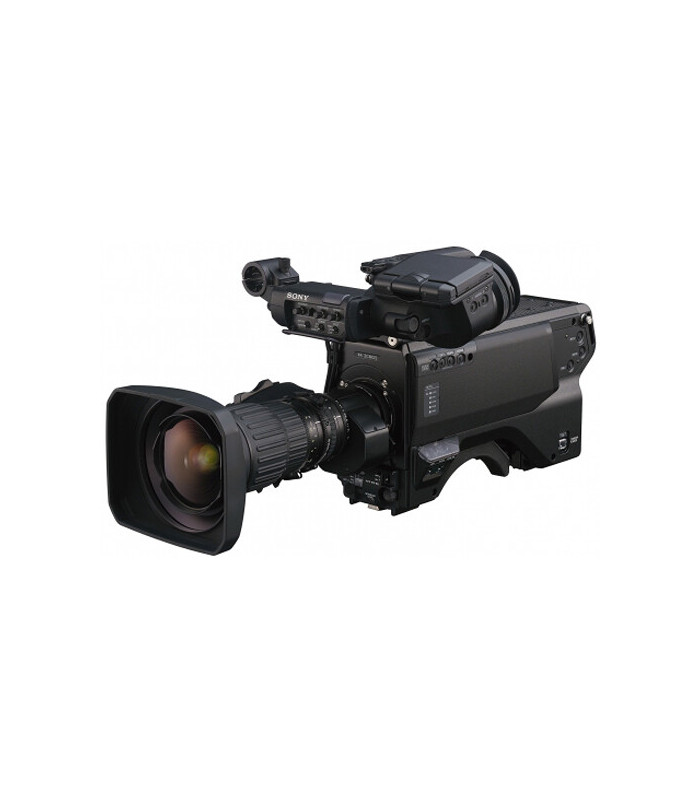

Sony HDC-3200/DF - 4K/HD Portable Studio Camera Head
4K/HD Portable Studio Camera head with SMPTE Fibre Interface and dual filter option. 2nd...
Mehr lesen
Mehr Infos
|
Specifications |
|
| Imaging | ||
| Image Sensor | 1-Chip 2/3" CMOS Sensor | |
| Sensor Resolution | Not Specified by Manufacturer | |
| Prism Speed | f/1.4 | |
| Sensitivity | f/10 at 2000 lux 89.9% Reflectance (1080 59.4p) f/11 at 2000 lux 89.9% Reflectance (1080 50p) |
|
| Camera | ||
| Lens Mount | B4 Mount | |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | |
| Interfaces | ||
| CCU Interface | 1 x LEMO SMPTE | |
| Video I/O | 1 x BNC Output 1 x BNC Output |
|
| Audio I/O | 1 x XLR 3-Pin Mic/Line Input 1 x XLR 5-Pin Intercom Input/Output 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output |
|
| Lens Control | 1 x 12-Pin | |
| Other I/O | 1 x 20-Pin Viewfinder Output 1 x BNC 1 x BNC (Genlock, Sync) 1 x 6-Pin Control 1 x DIN 8-Pin Control 1 x 12-Pin Data 1 x USB Type-A Data |
|
| Recording | ||
| Recording Media | None | |
| Display | ||
| Display Type | None | |
| Size | None | |
| Resolution | None | |
| Power | ||
| Power I/O | 1 x XLR 4-Pin (10.5 to 17 VDC) Input 1 x XLR 4-Pin (10.5 to 17 VDC at 5 A) Output 1 x Light 2-Pin (10.5 to 17 VDC at 2.5 A) Output |
|
| Environmental | ||
| Operating Temperature | -4 to 113°F / -20 to 45°C | |
| Storage Temperature | -4 to 140°F / -20 to 60°C | |
| General | ||
| Weight | 10.1 lb / 4.6 kg | |
-
