Kinoflo SYS-BK12 - Block/KF21 Single Battery System, 140Whr, 28.8V (2 Batteries)

1001591

Neu

Block/KF21 Single Battery System, 140Whr, 28.8V (2 Batteries)

Visuals Preis :

1 611,47 CHF


1 742,00 CHF inkl. MwSt.

Rectangle
Garantie: garantie Visuals Garantie: 24 Monate
Interner Service: Revision, Reparatur & Backup.

Verfügbarkeit: clock

Lieferzeiten von 4 bis 6 Wochen


Bestellen Sie jetzt, wir liefern so schnell wie möglich oder
kontaktieren Sie uns für Alternativen: 043 255 59 00.

- +

1001591
Mehr Infos

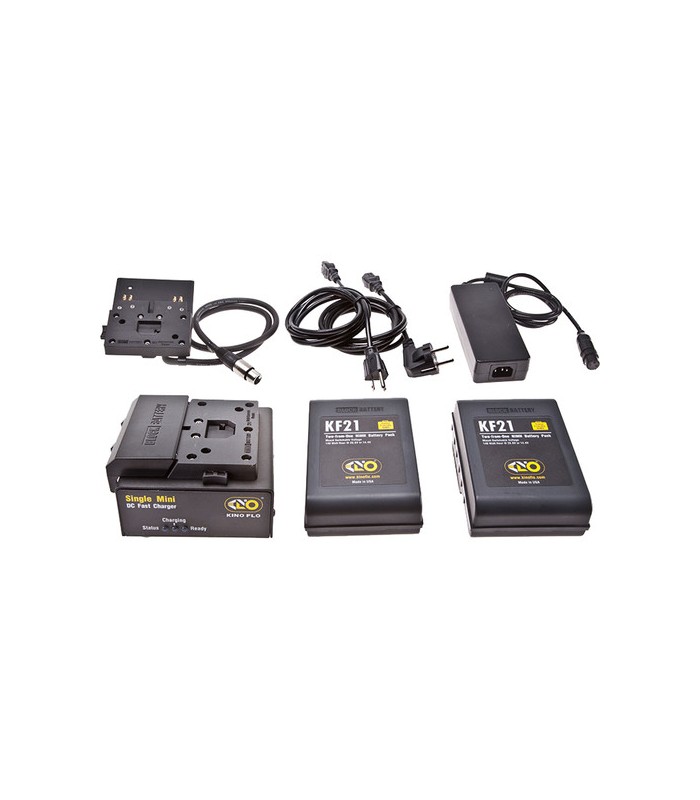

Kinoflo Block/KF21 Single Battery System, 140Whr, 28.8V (2 Batteries)



Made to charge the KF21 nickel metal-hydride battery, the Block/KF21 Single Battery System with 2 NiMH Batteries from Kino Flo and BlockBattery will recharge the included KF21 batteries in 1.5 hours. The system includes a Universal Power Supply with 100-240 VAC input and 48 V, 2.5 A output. Thanks to the included Mafer Mount, the batteries can be mounted to a stand using a Mafer Clamp. The system is compatible with Celeb 250 LED DMX, Diva-Lite 20 and 30 LED DMX, FreeStyle 31 and 21 LED DMX, and Select 20 and 30 LED DMX fixtures.



Single Fast Charger with Universal Power Supply



Made to charge the KF21 nickel metal-hydride battery, the Single Fast Charger System with Universal Power Supply from Kino Flo and BlockBattery has a 3-LED charge status indicator and will recharge the KF21 in 1.5 hours, far shorter than most lithium-ion batteries. The system includes a Universal Power Supply with 100-240 VAC input and 48 V, 2.5 A output. The system is compatible with Celeb 250 LED DMX, Diva-Lite 20 and 30 LED DMX, FreeStyle 31 and 21 LED DMX, and Select 20 and 30 LED DMX fixtures.






Specifications



Charger



Power

Input: 48 VDC, 3 A

Dimensions

5.5 x 5.5 x 3.5" (14 x 14 x 9.0 cm)

Weight

1.5 lb (0.7 kg)

Power Supply



Power

DC/DC, 3-Pin XLR

Input: 100-240 VAC, 50/60 Hz, 1.4 A

Output: 48 V, 2.5 A, 120 W max

Dimensions

6.5 x 2.5 x 1.5" (16.5 x 6.5 x 4.0 cm)

Weight

2.0 lb (0.9 kg)

Compatible



Compatible With

Celeb 250 LED DMX

Diva-Lite 20 and 30 LED DMX

FreeStyle 31 and 21 LED DMX

Select 20 and 30 LED DMX



KF21 Nickel Metal-Hydride Battery



Partnering with BlockBattery, Kino Flo has created the KF21 Nickel Metal-Hydride Battery to power their LED fixtures. The 140Wh, 28.8V battery provides 1 hour 10 minutes run time for compatible light fixtures and recharges in 1.5 hours in the charger that's made for it. Battery adapters may be used to access 14.4V for products that have 14.4V inputs. The KF21 is compatible with Celeb 250 LED DMX, Diva-Lite 20/30 LED DMX, FreeStyle 31/21 LED DMX, and Select 20/30 LED DMX light fixtures.






Specifications



Compatibility

Celeb 250 LED DMX

Diva-Lite 20 and 30 LED DMX

FreeStyle 31 and 21 LED DMX

Select 20 and 30 LED DMX

Type

NiMH (Nickel Metal-Hydride)

Voltage

28.8 V

Watt Hours

140 Wh or 5.0 amp hours @ 28 VDC

Charge Time

1.5 h

Run Time

Approximately 1 h 10 min with compatible lights at full power

Restriction on Hazardous Substances

Unrestricted for air and ground transport

Storage

41-77° (5-25°C)

Dimensions

6 x 4.5 x 3" (15 x 11 x 8 cm)

Weight

4.5 lb (2 kg)




Mafer Mount



The KF21 Mafer Mount from Kino Flo is a handy way to provide power to the Celeb 250 LED, Diva-Lite 20/30 LEDs, FreeStyle 31/21 LEDs, Select 20/30 LEDs and Celeb 850 LED lights. The mount attaches to a stand via the mount's 5/8" receiver and a Mafer or similar clamp. The LED light itself, can then attach to the stand's 5/8" pin. The 28.8V K21 battery attaches to a housing built into the mount and the included 3-pin, 3' XLR output cable is then attached to the light. The arrangement keeps the battery off the floor and places it and the stand in line with the light and its controls.






Specifications



Dimensions

5/8" (16 mm) Pin

5/8" (16 mm) Receiver Output Cord: 3.0' (0.9 m)

Connection

3-Pin XLR

Material of Construction

Metal
