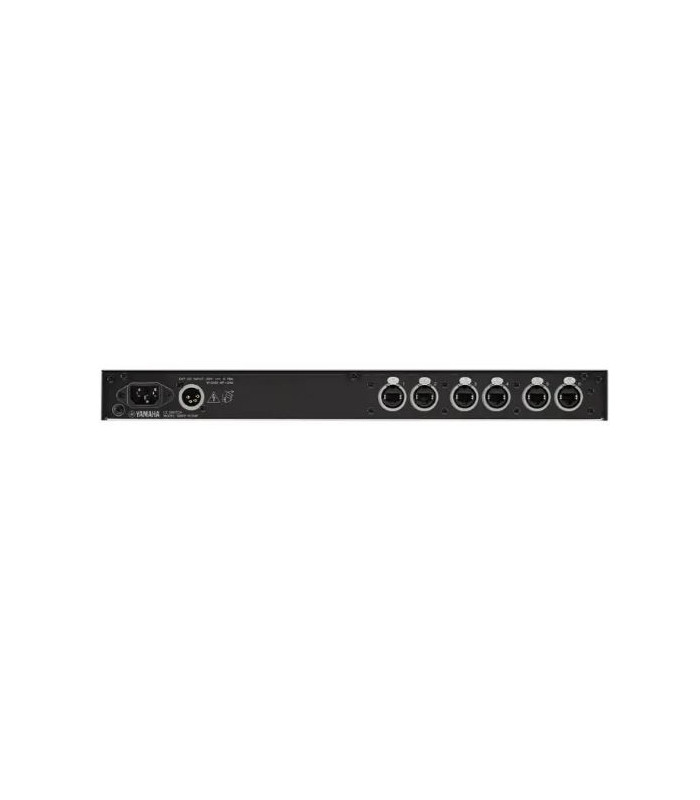

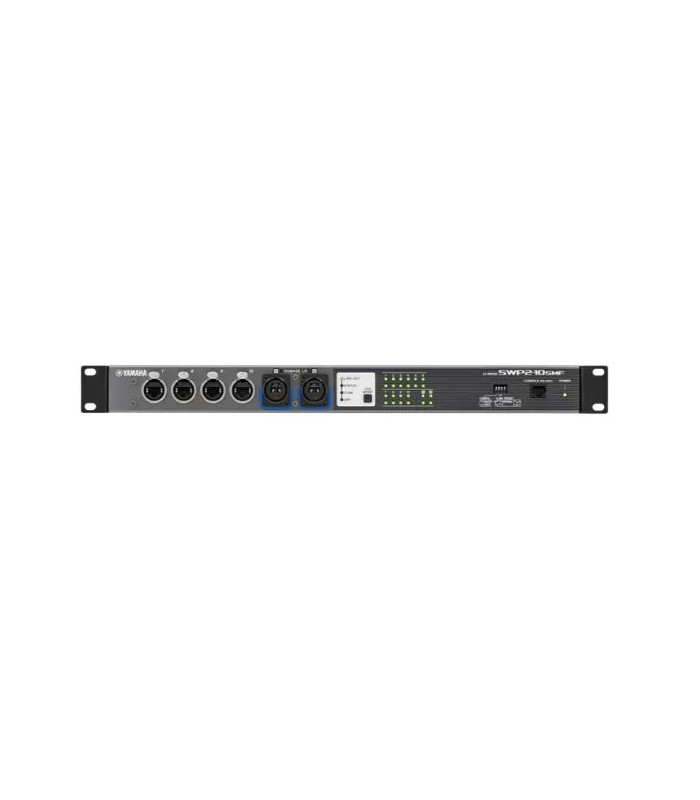

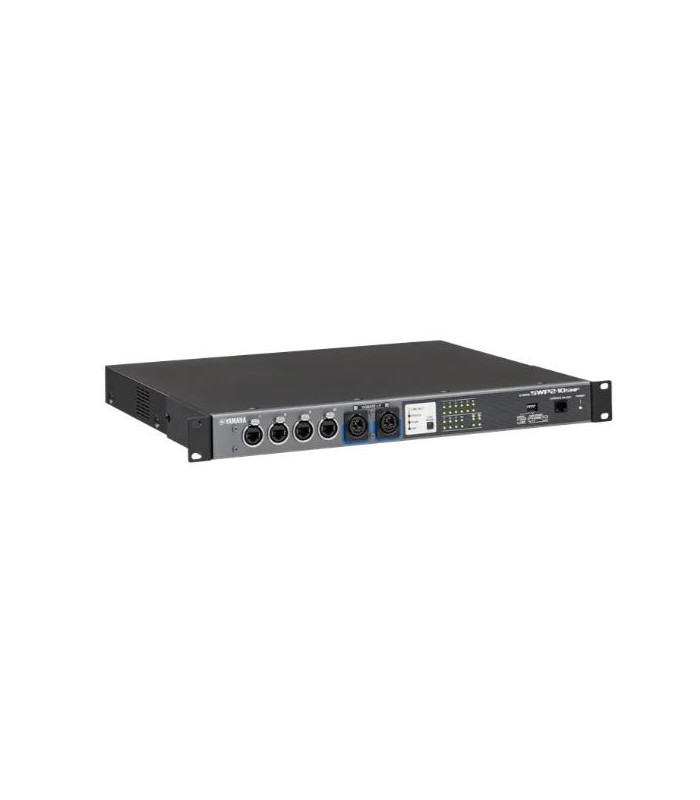

Yamaha SWP2-10SMF - L2 Switch
Today's audio production relies increasingly on network integration to tie systems together and deliver high-quality content. Yamaha's SWP2-10SMF is a 10 gigabit Dante ready network switch designed to get a network up and running, and keep it that way with minimal effort, so you can get back to the task at hand.
The SWP2-10SMF is a single-mode fiber design that supports transmission over distances of up to 10km (6mi), and with 10-gigabit optical support, you'll have all the bandwidth you need to operate your network at 96kHz over that distance. And as your network grows, the SWP2 series allows a Dante optimized setup to be recalled by simply flipping one DIP switch. No expertise or training is required.
Network reliability is especially crucial in live sound applications where interruptions aren't tolerated. With this in mind, Yamaha designed the SWP2 with reliable ethercon jacks instead of conventional RJ45 connectors, leaving you with one less thing to worry about. Speaking of reliability, these units feature a locking AC connector to combat accidental disconnection. An optional redundant XLR type DC power supply (sold separately) is also available to guard against AC supply problems.
Data isolation through the use of three separate VLAN presets allows for efficient handling of multiple services at once like Dante communication, digital mixer, and power amp control. By creating virtual networks for these functions, the SWP2 eliminates interference, leaving you with a stable reliable audio network. The presets can be selected via a front panel DIP switch and can be customized if desired by switching to user mode.
A dedicated Yamaha LAN monitor application for Windows provides a comprehensive single-screen view giving you "network visibility" of all necessary parameters when used with SWP/SWR series switches. You can even take a snapshot of your preferred status and set an alarm to warn you if any of the parameters change so that problems can be identified and resolved quickly and easily.
Reliably optimizing and monitoring your audio network, the SWP2-10SMF lets you focus on what you do best.
Features
- Simple DIP switch Dante optimization
- Multi-mode fiber design with transmission up to 10km (6mi) @ 96kHz
- 3 preset VLAN domains with user mode for customization
- ethercon connectors for live sound reliability
- Locking AC cable to prevent accidental disconnection
- Dedicated LAN monitor app for Windows provides network visibility
|
Specifications |
|
Number of LAN ports (1000BASE-T/100BASE-TX/10BASE-T, ethercon connector) |
10 |
|
Number of SFP+ ports (10GBASE-SR, opticalcon DUO connector) |
0 |
|
Number of SFP+ ports (10GBASE-LR, opticalcon DUO connector) |
2 |
|
Console port |
1 (RJ-45) |
|
Automatic negotiation |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
DIP switches |
CONFIG, VLAN PRESET |
|
Indicators |
Front: POWER, LED MODE×4, PORT×10×2, SFP+ ×2×2 |
|
Operating temperature |
0 to 40°C |
|
Storage temperature |
-20 to 60°C |
|
Power supply (AC IN inlet) |
AC100V-240V, 50/60Hz, Internal power supply (no power switch), Power supply inlet: locking type |
|
Power supply (EXT DC INPUT inlet) |
24VDC±2V, 0.78A, XLR-4-32 type Connector |
|
Maximum power consumption |
21W, 0.35A |
|
Heat dissipation |
18.5 kcal/h |
|
Body material |
Metal case, no fan |
|
Hazardous substances management |
RoHS compliant |
|
Dimensions WxHxD |
480 mm X 44 mm X 362 mm |
|
Weight |
4.5 kg (excluding accessories) |
-
