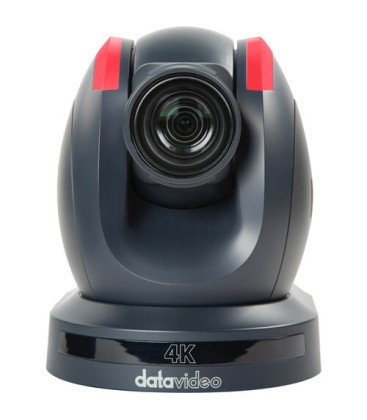

Datavideo PTC-285 - 4K Tracking PTZ Camera
Mehr Infos
|
Specifications |
|
| Imaging | ||
| Sensor Type | 1/2.8"-Type CMOS Sensor | |
| Sensor Resolution | Effective: 8.51 Megapixel | |
| Built-In ND Filter | None | |
| Focus Control | Autofocus Manual Focus |
|
| Exposure Control | ||
| Shutter Speed | 1/30 to 1/10000 Second | |
| Signal-to-Noise Ratio | 55 dB | |
| Minimum Illumination | 0.5 Lux | |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) | |
| Lens | ||
| Focal Length | 4.4 to 52.8mm | |
| Optical Zoom Ratio | 12x | |
| Max Digital Zoom | 16x | |
| Field of View | Horizontal: 80° | |
| Maximum Aperture | f/1.8 to 2.6 | |
| Video Capture | ||
| External Recording Modes | HDMI / RJ45 3840 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps SDI/BNC 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps |
|
| Embedded Audio | HDMI SDI LAN (RJ45) |
|
| Broadcast Output | NTSC/PAL | |
| IP Streaming | H.264, H.265, MJPEG 320 x 240 to 3840 x 2160 at 23.98p, 24p, 25p, 29.97p, 50p, 59.94p, 60p (50.00 Mb/s) |
|
| IP Multi-Stream Support | Simultaneous H.264, H.265, MJPEG: 2160p, 1080p, 720p, 480p, 360p |
|
| Control | ||
| Presets | 255 via IR, RS-232, VISCA | |
| Move Speed | Pan: 0.87 to 43°/sec Tilt: 0.69 to 21.32°/sec |
|
| Movement Range | Pan: 300° Tilt: 145° (-15 to 130°) |
|
| Tally Light | Yes | |
| Supported Control Protocols | IP IR Pelco-D Pelco-P RS-232 VISCA |
|
| Interface | ||
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI 2.0 Output |
|
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input | |
| Other I/O | 1 x RJ45 (Gigabit Ethernet) Control/Data/Video Input/Output 1 x USB-A (USB 2.0) Data Input 1 x RJ45 (RS-422) Control Input/Output |
|
| Built-In Speaker | No | |
| Power | ||
| PoE Support | PoE 802.3af | |
| Power I/O | 1 x DC (12VDC) Input | |
| Power Consumption | Device: 21 W | |
| Environmental | ||
| Operating Temperature | 32 to 72°F / 0 to 40°C | |
| General | ||
| App Compatible | No *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
|
| Dimensions (W x H x D) | 8.6 x 7.44 x 6.8" / 219 x 189.08 x 173 mm | |
| Weight | 5.7 lb / 2.6 kg | |
-
