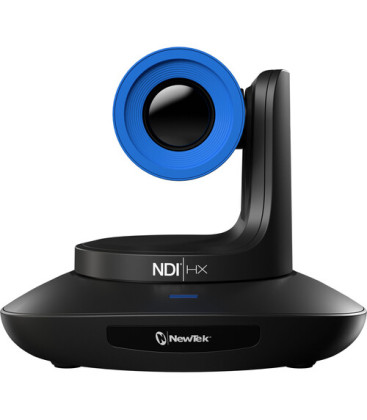

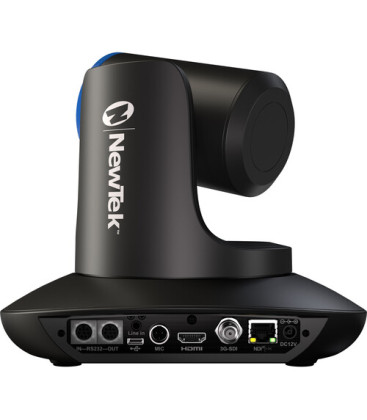

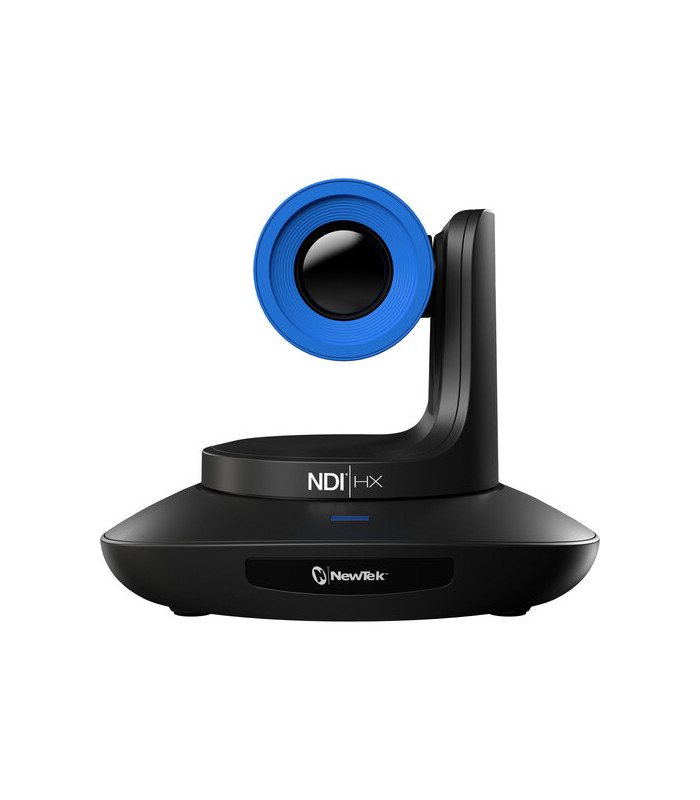

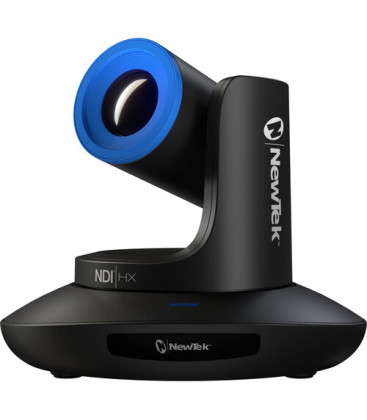

Vizrt NDIHX-PTZ3B - NDI|HX - PTZ3 Camera - Black

Artikel-Nr.: 1052635

Zustand: Neu

Combining the simplicity and control of a PTZ camera with NDI | HX 3 protocol, the NewTek...

Visuals Preis :

2 335,13 CHF

2 524,27 CHF inkl. MwSt.

Garantie: Visuals Garantie: 24 Monate Interner Service: Revision, Reparatur & Backup.

Verfügbarkeit:

Lieferzeit binnen 2 bis 4 Wochen

SKU: 1052635

Mehr Infos

	Specifications
	Imaging
	Image Sensor	1/2.86"-Type CMOS
	Built-In ND Filter	No
	Focus Control	Autofocus
	Exposure Control
	Shutter Type	Electronic Rolling Shutter
	Shutter Speed	1/10000 to 1/30 Second
	Minimum Illumination	1 Lux
	Lens
	Focal Length	4.9 to 98mm
	Optical Zoom Ratio	20x
	Max Digital Zoom	2x
	Field of View	Horizontal: 60 to 3.2°
	Maximum Aperture	f/1 to 14
	Minimum Focus Distance	Wide: 4.9' / 1.5 m Telephoto: 59.1" / 1.5 m
	Video Capture
	External Recording Modes	SDI/BNC / HDMI / RJ45 1920 x 1080p at 24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 24.00/25/29.97/50/59.94 fps
	Audio Recording	48 kHz
	Broadcast Output	NTSC/PAL
	IP Streaming	H.264, H.265, NDI\|HX3 1920 x 1080
	Control
	Move Speed	Pan: 120°/sec Tilt: 80°/sec
	Movement Range	Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°)
	Tally Light	Yes
	Supported Control Protocols	NDI RS-232
	Interface
	Video I/O	1x HDMI Output 1x BNC (3G-SDI) Output 1x RJ45 (NDI) Output
	Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Line Input 1x Mini XLR Microphone Input
	Other I/O	1x Mini-DIN 9-Pin (RS-232) Input 1x Mini-DIN 9-Pin (RS-232) Output 1x RJ45 (NDI) Input/Output
	Power
	PoE Support	PoE+ 802.3at
	Power I/O	1x Barrel (12VDC) Input
	Power Consumption	Device: 8 W
	Environmental
	Operating Temperature	14 to 122°F / -10 to 50°C
	Operating Humidity	20 to 80%
	General
	Weight	2.98 lb / 1.35 kg
	Packaging Info
	Package Weight	8.775 lb
	Box Dimensions (LxWxH)	12 x 10.8 x 10.4"
