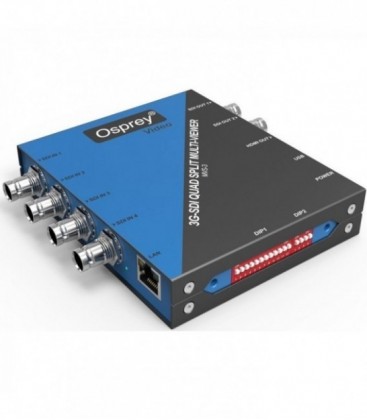

Variosystems VS-OS-97-00003 - MVS-3, 4 Channel SDI Multi Viewer

In addition to SDI to HDMI conversion, the MVS-3 3G-SDI Scaling Converter & Multiviewer from Osprey Video functions as a multiviewer output. Tools providing a selection of video workflow features include a built-in scaler, plus interlacing and de-interlacing functions. A frame rate converter adjusts the input signal to your required output standard. For quick signal monitoring, audio bars can be overlaid on each channel.


The MVS-3 Scaling Multiviewer is designed with four 3G-SDI inputs, two 3G-SDI outputs, and one HDMI multiviewer output. The multiviewer can display two or more inputs in a variety of layouts. Settings can be changed using the LAN and USB interfaces, or the converter's DIP switches. This compact unit comes with a power supply and mounting brackets.



Features


- SDI input is scaled and/or frame rate–converted to your required output standard

- Four 3G-SDI inputs; one HDMI and two 3G-SDI outputs

- Large variety of multiviewer layouts

- For quick signal monitoring, audio bars can be overlaid on each channel

- Settings can be configured via the MVS-3's LAN or USB interfaces, or DIP switches
