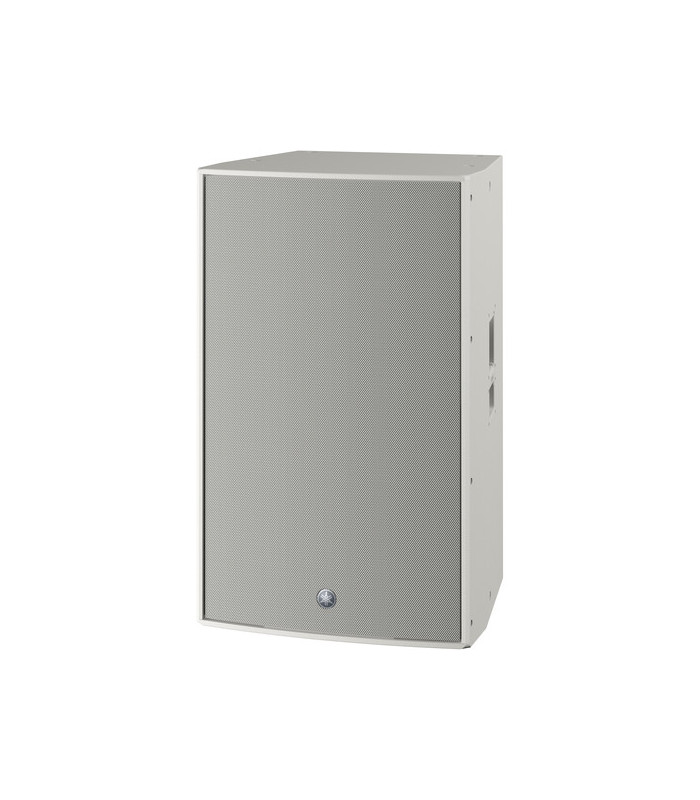

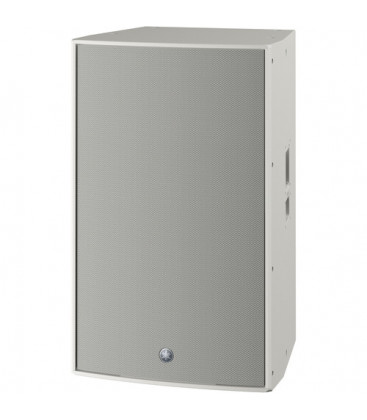

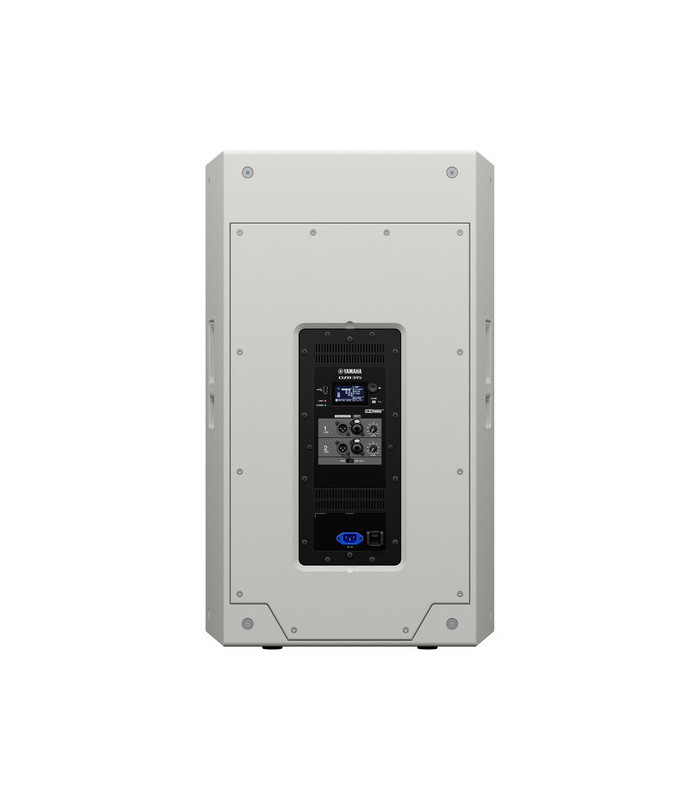

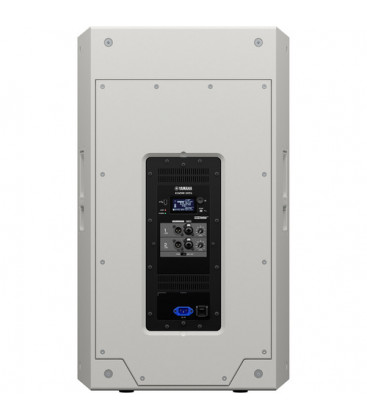

Yamaha DZR315W - 2000W 3-Way 15" Powered Loudspeaker (White)

Specifications

PA Speaker

Configuration

Active 3-Way

Enclosure Type

Bass-Reflex Loudspeaker

Total Power Capacity

2000 W Peak

 950 W RMS

Amplifier Power Rating

LF:

 1000 W Peak

 850 W RMS

HF/MF:

 1000 W Peak

 100 W RMS

Amplifier Class

Class-D

Drivers

HF Driver

1 x Titanium Compression Driver with 1" / 25.4 mm Throat

HF Voice Coil

2" / 50.8 mm

MF Driver

1 x 8" / 203.2 mm Cone

MF Voice Coil

1.5" / 38.1 mm

LF Driver

1 x 15" / 381 mm Woofer

LF Voice Coil

3" / 76.2 mm

Magnet

HF:

 Neodymium

MF:

 Ferrite

LF:

 Neodymium

Performance

Frequency Range

31 Hz to 20 kHz -10 dB

Maximum SPL

143 dB

Coverage Angle

75° H x 50° V

Max Input Level

Line Input:

 +24 dBu

I/O Impedance

Input:

 20 Kilohms

Connectivity

Audio I/O

2 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Input

2 x XLR 3-Pin Male Balanced Output

USB

1 x USB Type-A (External Memory, Host Connection)

Signal Processing

Crossover

Low-Pass:

 700 Hz (Active)

High-Pass:

 2.5 kHz (Passive)

Max Sample Rate/Resolution

96 kHz

Power

AC Input Power

Universal:

 100 to 240 VAC, 50 / 60 Hz

AC Power Connector

1 x IEC (Locking)

Power Consumption

45 W (Idle)

 150 W (1/8 Power)

Physical

Mounting

16 x M10 Fly Point

Handles

1 x Each Side

Cooling

Fan (Variable Speed)

Construction Material

Plywood

Dimensions

21.7 x 35.3 x 20.5" / 550 x 897 x 520 mm

Weight

91.7 lb / 41.6 kg
