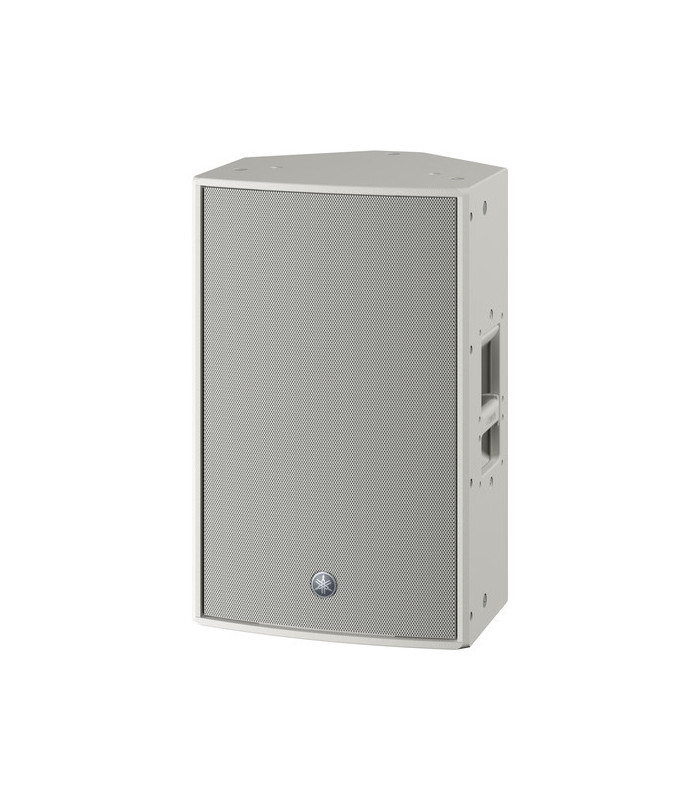

Yamaha DZR12W - 2000W 2-Way 12" Powered Loudspeaker (White)

Specifications

PA Speaker

Configuration

Active 2-Way

Enclosure Type

Bass-Reflex Loudspeaker

Total Power Capacity

2000 W Peak

 950 W RMS

Amplifier Power Rating

LF:

 1000 W Peak

 850 W RMS

HF:

 1000 W Peak

 100 W RMS

Amplifier Class

Class-D

Drivers

HF Driver

1 x Rotatable Horn Titanium Compression Driver with 1" / 25.4 mm Throat

HF Voice Coil

2" / 50.8 mm

LF Driver

1 x 12" / 30.5 cm Woofer

LF Voice Coil

3" / 76.2 mm

Magnet

HF:

 Neodymium

LF:

 Neodymium

Performance

Frequency Range

39 Hz to 20 kHz -10 dB

Maximum SPL

139 dB

Coverage Angle

90° H x 60° V (Rotatable Horn)

 60° H x 90° V (Monitor)

Max Input Level

Line Input:

 +24 dBu

I/O Impedance

Input:

 20 Kilohms

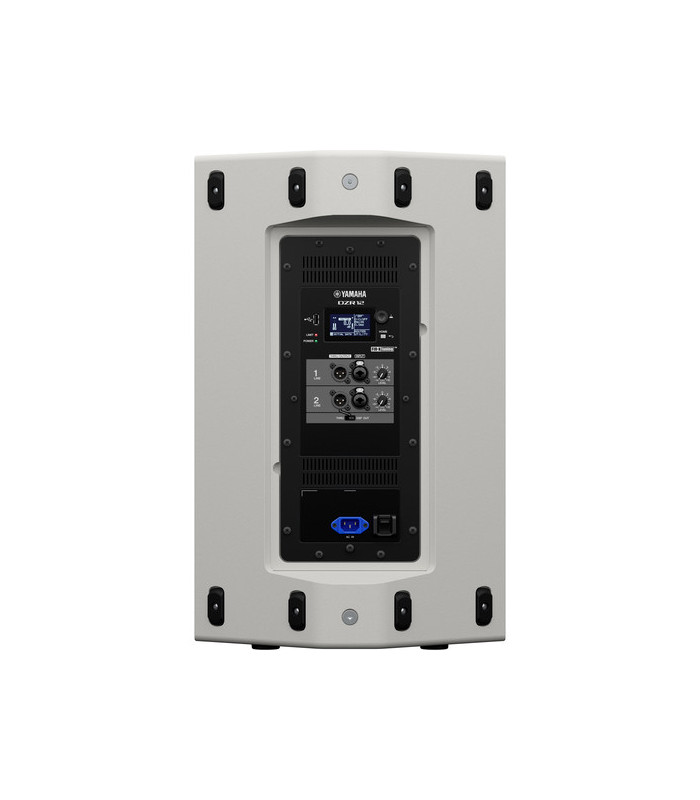

Connectivity

Audio I/O

2 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Input

2 x XLR 3-Pin Male Balanced Output

USB

1 x USB Type-A (External Memory, Host Connection)

Signal Processing

Crossover

1.8 kHz

Max Sample Rate/Resolution

96 kHz

Power

AC Input Power

Universal:

 100 to 240 VAC, 50 / 60 Hz

AC Power Connector

1 x IEC (Locking)

Power Consumption

45 W (Idle)

 150 W (1/8 Power)

Physical

Mounting

12 x M10 Fly Point

2 x 1.4" / 35 mm Pole Socket (Dual Angle, Bottom)

Monitor Angle

50°

Handles

1 x Each Side

Cooling

Fan (Variable Speed)

Construction Material

Plywood

Dimensions

16.1 x 25.4 x 15.5" / 410 x 646 x 394 mm

Weight

47.2 lb / 21.4 kg
