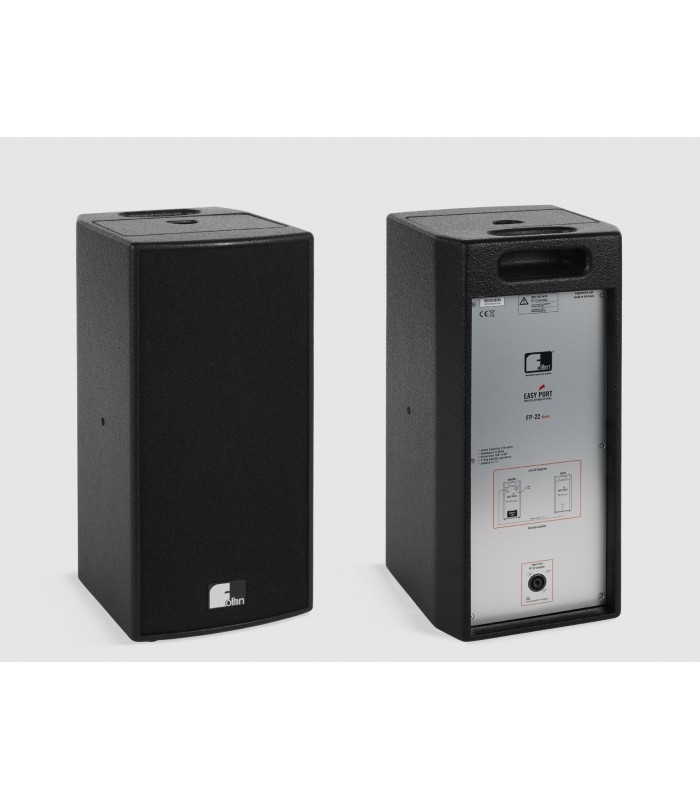

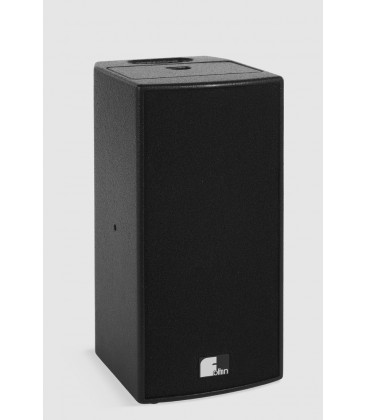

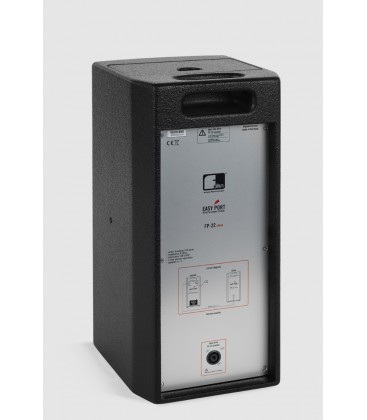

Fohhn FP-22 slave - Additional passive acoustic speaker
Mehr Infos
Fohhn Additional passive acoustic speaker
The FP-22 Slave is an extra passive speaker system that connects to an FP-22 Modular, enabling the sound coverage to reach additional areas and larger numbers of people. Using an optional Speakon cable, the FP-22 Slave can be connected to an existing FP-22 Modular unit. This provides the necessary power for the Slave. The unit is equipped with a special 2-way crossover with high frequency protection. Its design and sound capability corresponds to that of the FP-22 Modular.
The FP-22 Slave is an extra passive speaker system that connects to an FP-22 Modular, enabling the sound coverage to reach additional areas and larger numbers of people. Using an optional Speakon cable, the FP-22 Slave can be connected to an existing FP-22 Modular unit. This provides the necessary power for the Slave. The unit is equipped with a special 2-way crossover with high frequency protection. Its design and sound capability corresponds to that of the FP-22 Modular.
|
Specifications |
|
Electro-acoustical features |
|
|
Acoustic design |
Passive loudspeaker system 2-way, bass reflex |
|
Components |
8“ / 1“ compression driver with short horn |
|
Operating mode |
Passive (for operation with FP-22 modular) |
|
Power rating (nominal) |
120 W |
|
Sensitivity (@1m, peak) |
117 db |
|
Frequency range |
65 Hz – 20 khz |
|
Nominal dispersion (h x v) |
100° x 100° |
|
Features |
|
|
Enclosure |
Birch plywood cabinet, plastic feet, 1 handle |
|
Speaker stand pole |
Integral, ø 36 mm |
|
Mounting devices |
2x M8 mounting devices for U-bracket SHP-2 |
|
Connections |
Speakon NL-4 input |
|
Standard colour |
Black textured paint |
|
Frontal design |
Acoustic foam |
|
Dimensions (W x H x D) |
Approx. 240 x 510 x 270 mm |
|
Weight |
Approx. 9 kg |
|
Optional features |
|
|
Optional colours |
All RAL-colours |
-
