Specifications |
|
| Video Information (For 1 Screen) | ||
| Maximum Resolution | UHD 4k (3840x2160) at 4:4:4 | |
| Frame Rate | 30 | |
| Colour Depth | 8 bpc | |
| Video Information (For 2 Screens) | ||
| Maximum Resolution | UHD 4k (3840x2160) at 4:4:4 | |
| Frame Rate | 30 | |
| Colour Depth | 8 bpc | |
| Computer Connections | ||
| USB B | 8× 2.0 True Emulation (HID Only) | |
| USB B | 8× 2.0 High Speed | |
| Dual Port (DP+HDMI) | 8× 1.2 (dual mode) | |
| Console Connections | ||
| USB A | 2× 2.0 HID Emulation | |
| USB A | 1× 2.0 High Speed | |
| Dual Port (DP & HDMI) | 2× 1.2 (dual mode) | |
| Serial Ports | ||
| Serial Connection | 1× | |
| Serial Standard | RS232 | |
| Serial Additional Information | For remote control | |
| Serial Connection Type (console) | RJ12 (6p6c) | |
| Audio Connections | ||
| Audio Type | Analog/Digital | |
| Channels | 2 | |
| Audio Out Ports | 1× 3.5mm jack | |
| Audio Direction | Output only | |
| Network Support | ||
| 10/100 Support | No | |
| Environmental | ||
| Operating Temperature | 0 - 40 °C / 32 - 104 °F | |
| Storage Temperature | -20 - 60 °C / -4 - 140 °F | |
| Operating Humidity (%) | 0% - 80% (non-condensing) | |
| Storage Humidity (%) | 0% - 80% (non-condensing) | |
| Warranty | 2 y | |
| Temperature Regulation | Built-in Fan | |
| Power Source | ||
| 12V 3-pin | 1× | |
| Input Power Supply | PSU 4A | |
| Power Additional Information | 100-240V AC, 47/63Hz. 12V DC 48W output from power supply unit | |
| Power Consumption | ||
| Maximum Power (Watts) | 36 | |
| Maximum Power (Volts) | 12 | |
| Maximum Power (Current) | 3 | |
| Physical Design | ||
| Construction Material | Robust metal construction | |
| U size | 2 | |
| Width | 439mm / 17.3in | |
| Height | 58mm / 2.3in | |
| Depth | 237mm / 9.30in | |
| Weight | 3.8kg / 8.4lb | |
| Front Panel Features | ||
| Multi color status LEDs | 8× | |
| E-Paper Display | 1× | |
| Compatibility | ||
| OS Compatibility | Windows, Linux, macOS | |
| Approvals and Standards | ||
| Approvals | CE, cTUVus, FCC, ICES, UKCA | |
| Standards | ANSI 63.4, EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN61000-3-2, EN61000-3-3, EN63000, FCC pt15B | |
| Other | Cal Prop 65, China ROHS, EU REACH, UK REACH | |
| Ordering Information | ||
| Code | Description | |

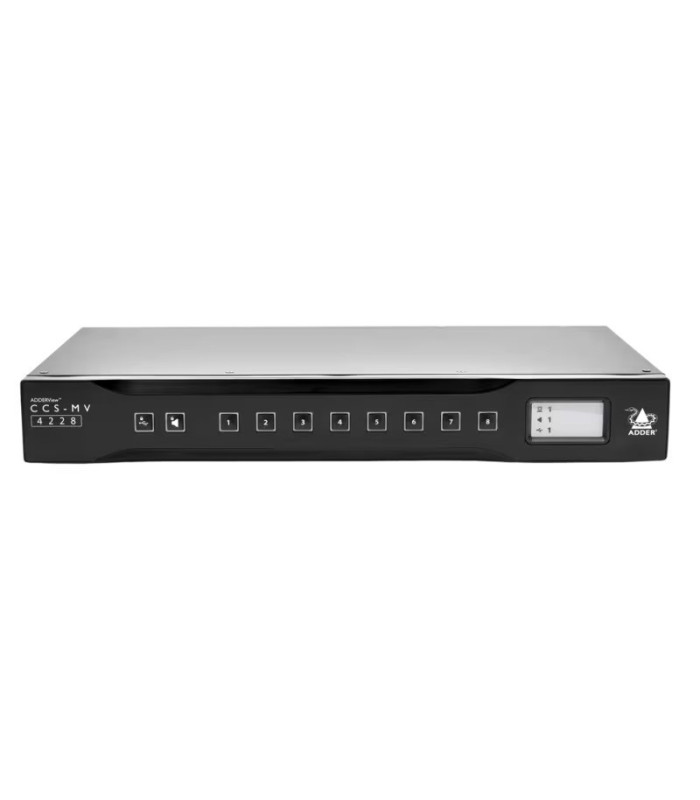

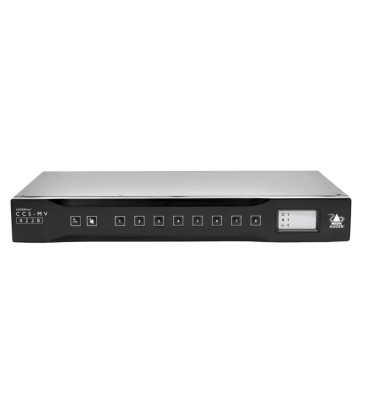

| CCS-MV4228 | ADDERView® CCS Multi-Viewer 8-port 4K switch | |
-
