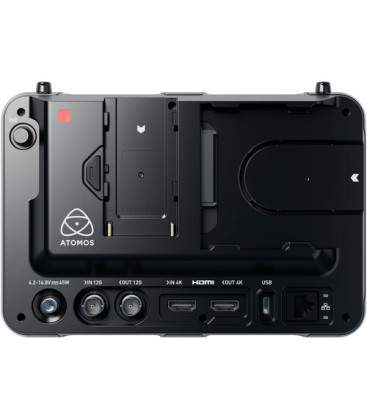

Atomos ATOMSHG002 - 7" Shogun Monitor-Recorder

1067422

Neu

The 7" Shogun Monitor-Recorder, one of the latest in the ATOMOS line of Shogun onboard...
Mehr lesen

Visuals Preis :

974,03 CHF


1 052,93 CHF inkl. MwSt.

Rectangle
Garantie: garantie Visuals Garantie: 24 Monate
Interner Service: Revision, Reparatur & Backup.

Verfügbarkeit: clock 3 Stück auf Lager

Achtung: Letzte(s) verfügbare(s) Stück(e)!

- +

1067422
Mehr Infos
Features

7-inch 2000nit monitor-recorder

12G SDI IN and OUT and HDMI IN and OUT

More Codecs

Capture in ProRes RAW up to 6K30p

New AtomOS 11

New monitoring tools

Long range ATOMOS AirGlu™ sync technology

Remote View

Record Assist

Playback Assist

Faster and stronger connectivity with Wi-Fi 6

1GbE Ethernet for high-speed robust hardwired network connection



Specifications


Display
Panel Type IPS-Type LCD
Display Size 7.0" / 17.8 cm
Resolution 1920 x 1200
Aspect Ratio 16:9
Touchscreen Yes
Maximum Brightness 2000 nits / cd/m2
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
HDR Compatibility HDR10
Pixels Per Inch (ppi) 315 ppi
Color Gamut 100% DCI-P3

100% Rec. 2020
Real-Time LUT Monitoring SDR, HDR
Image Controls Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra
Inputs / Outputs
Video I/O 1 x HDMI 2.0 Input

1 x BNC (12G-SDI) Input

1 x HDMI 2.0 Output

1 x BNC (12G-SDI) Output
Embedded Audio HDMI: 8-Channel

SDI: 24-Channel
Audio I/O 1 x 1/8" / 3.5 mm Headphone Output

1 x 1/8" / 3.5 mm Input

1 x 1/8" / 3.5 mm Output
Built-In Speaker None
Power I/O 1 x Barrel Input
Other I/O 1 x 2.5 mm (LANC)

1 x USB-C (Serial) Input

1 x RJ45 (Gigabit Ethernet) Input
Media/Memory Card Slot Single Slot: SSDmini/SSD with Master Caddy II/III
File System Support exFAT
Wi-Fi Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
Bluetooth Yes
Mobile App Compatible Yes: Android & iOS

App Name: AtomRemote

Functionality: Adjust Settings, Setup

*As of September, 2023: Check with manufacturer for the most up-to-date compatibility
Format Support
Video Format HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)

6K Raw: 30

4K Raw: 120

DCI 4K: 60

UHD 4K: 60

DCI 2K: 60

1080p: 120

1080i: 60/50

720p: 60
Gamma Curve ARRI Log C, ARRI Log C4, Canon Log, Canon Log 2, Canon Log 3, DCI-P3, DCI-P3+, FLAT, FUJIFILM F-Log, FUJIFILM F-Log 2, HDR-HLG, JVC J-Log, Nikon N-Log, OM-Log, Panasonic V-Gamut, Panasonic V-Log, Rec709, Rec2020, RED IPP2, REDlogFilm, S Cinetone, Sony S-Log 2, Sony S-Log 3, V-Log, V-Log L, Wide DR, Z-Log2
Video Signal Conversion HDMI to SDI



SDI to HDMI
Timecode Support Yes
Recording
Pulldown Conversion None
Camera Trigger SDI, HDMI
Pre-Roll Record None
Encoding Formats x

DNxHD

H.265

ProRes
Metadata Tagging Yes
Phantom Power None
Power
DC Input Power 6.2 to 16.8 VDC
Built-In Battery None
Battery Type 1 x L-Series
Mounting
Mounting 3 x 1/4"-20 Female

3 x 3/8"-16 Female
Environmental
Environmental Protection None
Operating Temperature 72°F / 40°C
General
Material of Construction Aluminum, Polycarbonate
Dimensions 7.8 x 5.2 x 1.6" / 198 x 133 x 40 mm
Weight 1.6 lb / 730 g
Packaging Info
Package Weight 3.02 lb
Box Dimensions (LxWxH) 10.4 x 7.8 x 3.6"



What is in the box :



1 x Shogun

1 x USB C PD to 2.1mm DC power lead

1 x Master Caddy III

2 x Wi-Fi Antennas

1 x AirGlu Antenna

Antenna tips

1 x 3.5mm to 3.5mm audio sync cable

Quick Start Guide
