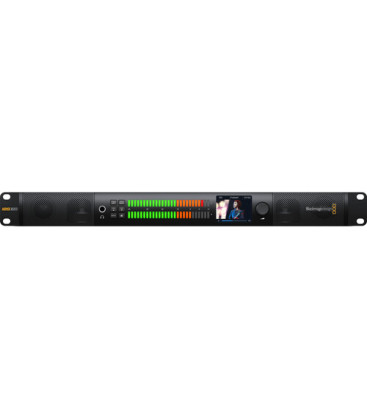

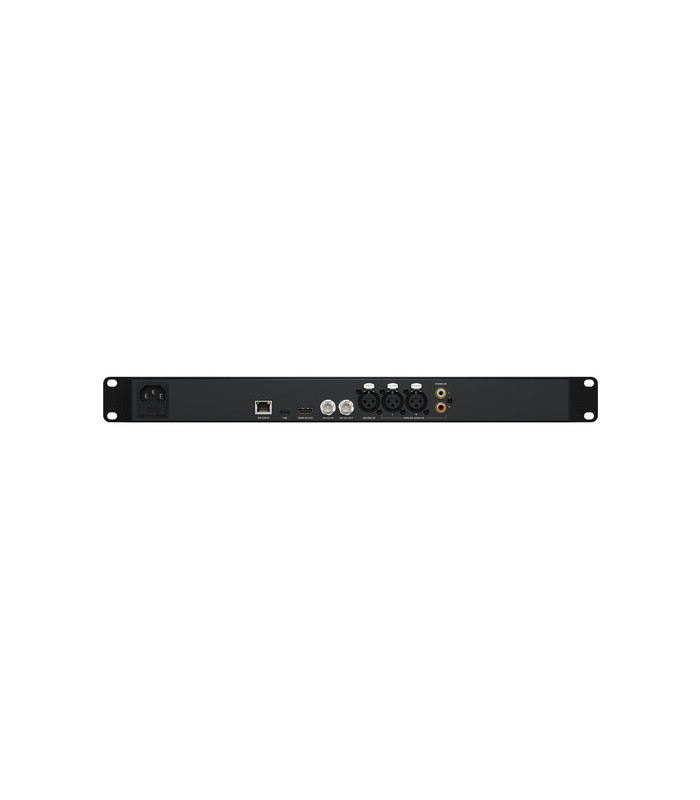

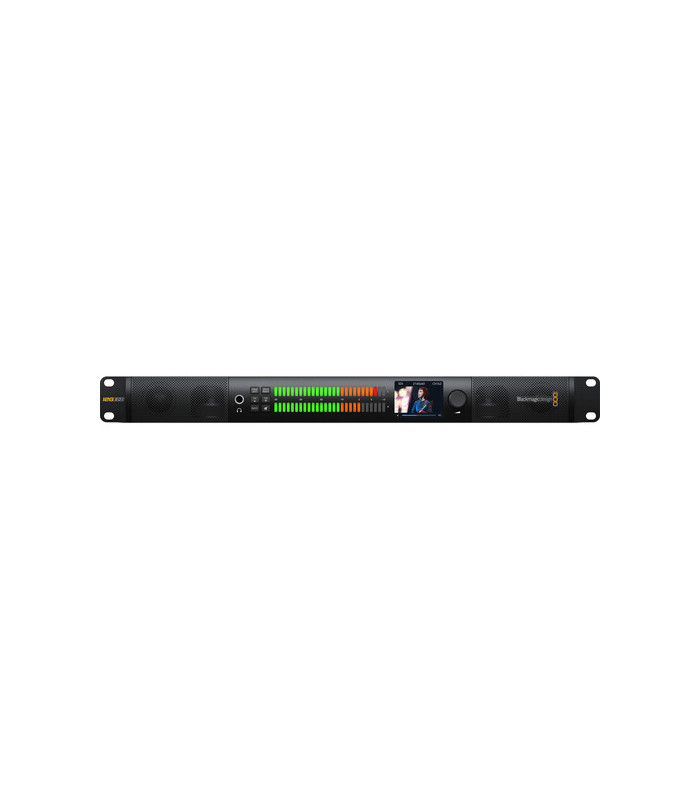

Blackmagic BM-HDL-AUDMON1RU12GG3 - Audio Monitor 12G G3
Monitor your audio with the 1 RU Blackmagic Audio Monitor 12G G3 from Blackmagic Design....
Mehr lesen
Mehr Infos
|
Specifications |
|
| Display | ||
| Panel Type | LCD | |
| Display Size | 2.2" | |
| Native Resolution | 320 x 240 | |
| Touchscreen | No | |
| Inputs/Outputs | ||
| USB I/O | 1 x USB-C Female Input | |
| Video I/O | 1x HDMI 2.0 Output 1x BNC (12G-SDI) Input 1x BNC (12G-SDI) Loop Output |
|
| Audio I/O | 1x XLR 3-Pin AES3/Line Input 2x XLR 3-Pin Input 2x RCA Input 1x 1/4" Headphone Output |
|
| Other I/O | 1 x RJ45 10G Ethernet 2110 IP Input | |
| Compliance | SMPTE 295M SMPTE 292M SMPTE 296M SMPTE 424M SMPTE 425M-A, 425M-B SMPTE 2081-1 SMPTE 2081-10 SMPTE 2082-1 SMPTE 2082-10 SMPTE 2110-20 SMPTE 2110‑21 SMPTE 2110‑30 SMPTE 2110‑40 SMPTE 2084 SMPTE 2108‑1 |
|
| Video Resolution | DCI 4K at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 UHD 4K at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 DCI 2K at 23.98, 24, 25 2KPsF at 23.98, 24, 25 1080p at 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 1080PsF at 29.97, 30 1080i at 50, 59.94, 60 720p at 50, 59.94, 60 525i at 59.94 625i at 50 |
|
| Sampling Rate | Audio: 96 kHz / 24-Bit Video: 4:2:2, 4:4:4 |
|
| Wireless | ||
| Wireless | Yes | |
| Power | ||
| Power Source | AC Input | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz | |
| Power Consumption | 55 W | |
| Physical | ||
| Color | Black | |
| Material of Construction | Metal | |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 90% Humidity | |
| Storage Conditions | -4 to 113°F / -20 to 45°C | |
| Dimensions | 19 x 9.53 x 1.74" / 48.3 x 24.21 x 4.42 cm | |
| Weight | 5.73 lb / 2.6 kg | |
| Packaging Info | ||
| Package Weight | 7.07 lb | |
| Box Dimensions (LxWxH) | 20.9 x 10.9 x 3.5" | |
-
