SmallHD 16-0710-R2 - Cine 7 RED RCP2 Kit (KOMODO, DSMC3)
Mehr Infos
SmallHD Cine 7 RED RCP2 Monitor Kit for KOMODO/DSMC3

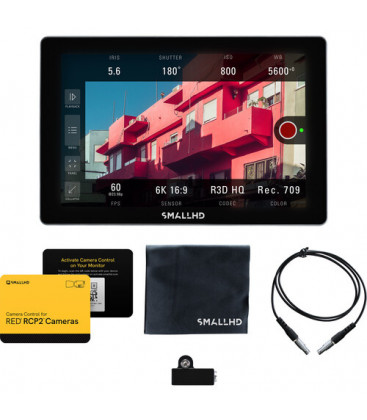

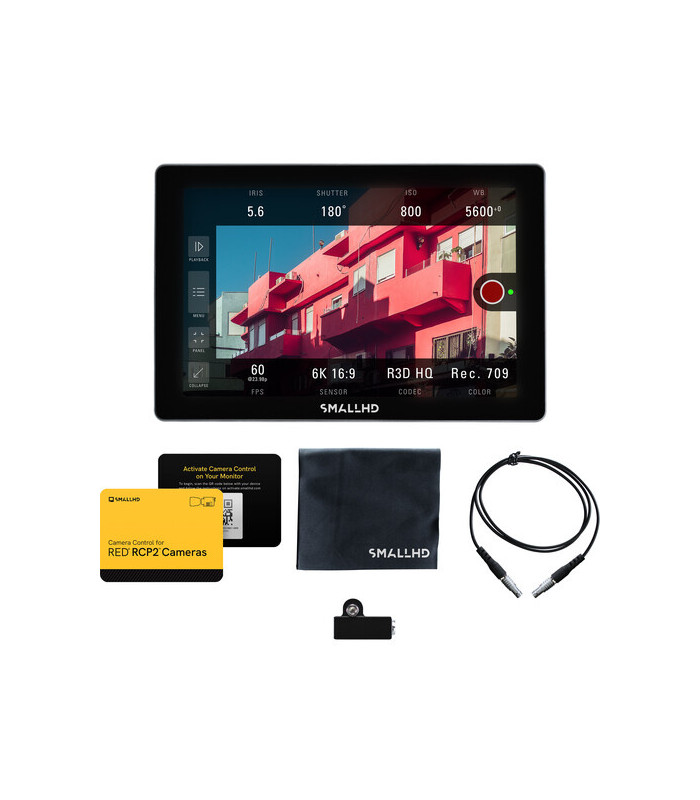

Use the lightweight Cine 7 RED RCP2 Monitor Kit from SmallHD to provide professional monitoring for your KOMODO or RED DSMC3 camera with a sharp 7" display suitable for indoor or outdoor use. The kit includes the Cine 7 monitor, an L-series battery plate, a micro-USB to 5-pin control cable, a cable adapter, a microfiber cleaning cloth, and the RED KOMODO/DSMC3 RCP2 camera control software upgrade.
The Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI. The RED control software loads onto the monitor and allows you to control RED camera functions via the RCP2 protocol such as run/stop, color and exposure controls, status, color temperature, video format, playback, shutter, menu control, and more, all via the Cine 7 touchscreen. The control cable and micro-USB-to-LEMO adapter allow the monitor to connect to the camera.

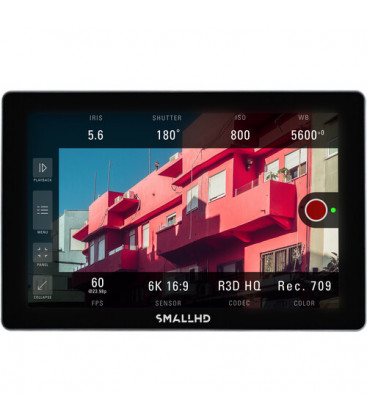

SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series)
Monitor your camera with the Cine 7 Touchscreen On-Camera Monitor from SmallHD. Featuring a sharp 7" display suitable for indoor or outdoor use, the Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.

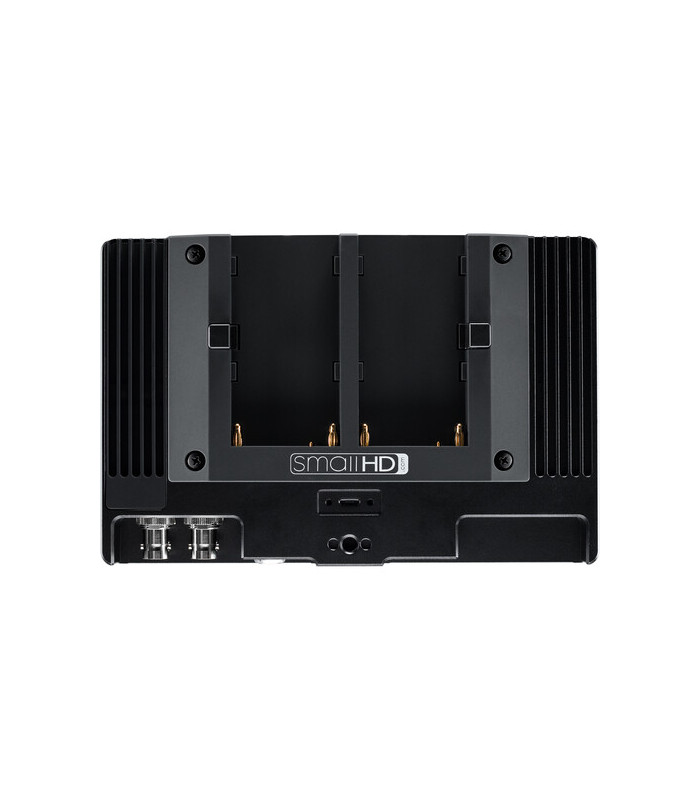

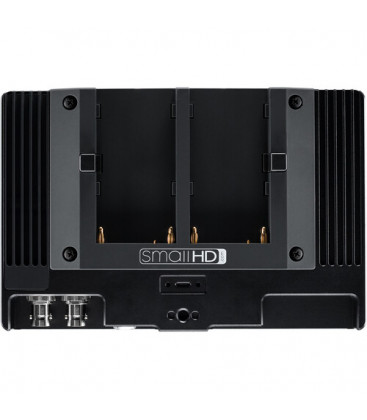

The Cine 7 features a bright 1800 cd/m², 322 ppi, 1920 x 1200 IPS LCD touchscreen with 3D LUT compatibility. Using the intuitive PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. At the rear of the monitor, an L-series mount battery plate accepts two L-series batteries for powering your monitor.
Key Features
- Daylight-viewable, 7" touchscreen on-camera monitor with 1800 cd/m² brightness
- Slim, lightweight design with 10-bit, touchscreen IPS LCD panel
- Supports up to 1080p60 video via full-size HDMI and 3G-SDI inputs
- HDMI-to-SDI and SDI-to-HDMI cross conversion is supported
- Uses SmallHD PageOS 4 to organize and save customized function and settings pages
- The included dual L-series battery plate allows you to hot-swap batteries as necessary, and the plate itself is swappable for other battery plates
- Four 1/4"-20 mounting points on top, left, right, and back
RED Control Features
- Run/stop
- Color controls
- Exposure controls
- Status
- Color temperature
- Video format
- Playback
- Shutter
- Menu control
Software Features
- Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch zoom
- DSLR scale: Canon 5D Mk II and Canon 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
- Image flip: Auto and manual
- Image rotation: Auto and manual
- Color focus assist: Adjustable style and intensity
- Peaking: Adjustable intensity
- False color: Spectrum, ARRI-style, and customizable
- Dual zebra: Customizable
- Waveform: Luma and RGB, customizable with region of interest highlighting
- Vectorscope: Yes
- RGB parade: Customizable
- Histogram: Luma and RGB
- Image capture: With dedicated button and image gallery
- Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Audio meters: HDMI and SDI up to 8 channels
SmallHD Microfiber Cleaning Cloth
Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use.
SmallHD Micro-USB to 5-Pin LEMO Adapter
Since SmallHD monitors can now display lens focus information with the latest OS3 upgrade, this Micro-USB to 5-Pin LEMO Adapter helps attach a Teradek RT lens controller to your monitor to map and display that information along with your camera's image.
The adapter features a micro-USB male connector that plugs directly into your monitor, and the female 5-pin LEMO adapter on the other end connects a separately available cable from a Teradek CTRL.1 or CTRL.3 lens controller. The port can also power the controller using 5V pass-through power from the micro-USB port. The adapter mounts directly onto your monitor using a 1/4"-20 thumbscrew, or it can mount onto a monitor cage.
Compatibility
SmallHD monitors running OS3
Teradek RT CTRL.1 and CTRL.3 lens controllers
The Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI. The RED control software loads onto the monitor and allows you to control RED camera functions via the RCP2 protocol such as run/stop, color and exposure controls, status, color temperature, video format, playback, shutter, menu control, and more, all via the Cine 7 touchscreen. The control cable and micro-USB-to-LEMO adapter allow the monitor to connect to the camera.
SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series)
Monitor your camera with the Cine 7 Touchscreen On-Camera Monitor from SmallHD. Featuring a sharp 7" display suitable for indoor or outdoor use, the Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.
The Cine 7 features a bright 1800 cd/m², 322 ppi, 1920 x 1200 IPS LCD touchscreen with 3D LUT compatibility. Using the intuitive PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. At the rear of the monitor, an L-series mount battery plate accepts two L-series batteries for powering your monitor.
Key Features
- Daylight-viewable, 7" touchscreen on-camera monitor with 1800 cd/m² brightness
- Slim, lightweight design with 10-bit, touchscreen IPS LCD panel
- Supports up to 1080p60 video via full-size HDMI and 3G-SDI inputs
- HDMI-to-SDI and SDI-to-HDMI cross conversion is supported
- Uses SmallHD PageOS 4 to organize and save customized function and settings pages
- The included dual L-series battery plate allows you to hot-swap batteries as necessary, and the plate itself is swappable for other battery plates
- Four 1/4"-20 mounting points on top, left, right, and back
RED Control Features
- Run/stop
- Color controls
- Exposure controls
- Status
- Color temperature
- Video format
- Playback
- Shutter
- Menu control
Software Features
- Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch zoom
- DSLR scale: Canon 5D Mk II and Canon 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
- Image flip: Auto and manual
- Image rotation: Auto and manual
- Color focus assist: Adjustable style and intensity
- Peaking: Adjustable intensity
- False color: Spectrum, ARRI-style, and customizable
- Dual zebra: Customizable
- Waveform: Luma and RGB, customizable with region of interest highlighting
- Vectorscope: Yes
- RGB parade: Customizable
- Histogram: Luma and RGB
- Image capture: With dedicated button and image gallery
- Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Audio meters: HDMI and SDI up to 8 channels
SmallHD Microfiber Cleaning Cloth
Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use.
SmallHD Micro-USB to 5-Pin LEMO Adapter
Since SmallHD monitors can now display lens focus information with the latest OS3 upgrade, this Micro-USB to 5-Pin LEMO Adapter helps attach a Teradek RT lens controller to your monitor to map and display that information along with your camera's image.
The adapter features a micro-USB male connector that plugs directly into your monitor, and the female 5-pin LEMO adapter on the other end connects a separately available cable from a Teradek CTRL.1 or CTRL.3 lens controller. The port can also power the controller using 5V pass-through power from the micro-USB port. The adapter mounts directly onto your monitor using a 1/4"-20 thumbscrew, or it can mount onto a monitor cage.
Compatibility
SmallHD monitors running OS3
Teradek RT CTRL.1 and CTRL.3 lens controllers
|
Specifications |
|
| SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series) | ||
| Display | ||
| Panel Type | IPS-Type LCD | |
| Display Size | 7.0" / 17.8 cm | |
| Screen Area | 5.95 x 3.72" / 15.11 x 9.45 cm | |
| Resolution | 1920 x 1200 | |
| Aspect Ratio | 0,6736111111 | |
| Touchscreen | Yes | |
| Maximum Brightness | 1800 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | |
| HDR Compatibility | None | |
| Pixels Per Inch (ppi) | 322 ppi | |
| Color Gamut | 100% DCI-P3 | |
| Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra | |
| I/O | ||
| Video | 1 x HDMI Type D Input 1 x HDMI Type D Output 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Input/Output |
|
| Embedded Audio | HDMI: 8-Channel SDI: 8-Channel |
|
| Audio | 1 x 1/8" / 3.5 mm Headphone Output | |
| Built-In Speaker | None | |
| Power I/O | 1 x 2-Pin LEMO (34 VDC) Input | |
| Other I/O | 1 x USB 2.0 (Micro-USB) | |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC | |
| Wi-Fi | None | |
| Format Support | ||
| Video Format | HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 240/239.76/120/119.88/100/60/59.94 576i: 200/100/50 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i: 50 480i: 59.94 |
|
| Video Signal Conversion | SDI to HDMI UHD 4K: 30/29.97/25/24/23.98 1080p: 119.88/100/60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 240/239.76 HDMI to SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100 720p: 60/59.94/50/30/29.97/25/24/23.98 480i: 59.94 576i: 50 |
|
| Power | ||
| DC Input Power | 6 to 16 VDC at 2.5 A | |
| Battery Type | 2 x L-Series | |
| Mounting | ||
| Mounting | 4 x 1/4"-20 Female | |
| Environmental | ||
| Certifications | CE, IC, RoHS, as per Manufacturer | |
| Operating Temperature | 30 to 100°F / -1 to 37°C | |
| Storage Temperature | 0 to 120°F / -17 to 48°C | |
| General | ||
| Dimensions | 7.1 x 4.7 x 1.3" / 18 x 11.9 x 3.3 cm | |
| Weight | 20 oz / 567 g | |
| Warranty Length | Limited 1-Year Warranty | |
| Packaging Info | ||
| Package Weight | 1.93 lb | |
| Box Dimensions (LxWxH) | 9.5 x 7 x 2" | |
| SmallHD Microfiber Cleaning Cloth Specs | ||
| Packaging Info | ||
| Package Weight | 0.025 lb | |
| Box Dimensions (LxWxH) | 4.1 x 4 x 0.2" | |
| SmallHD Micro-USB To 5-Pin LEMO Adapter | ||
| Connector 1 | Micro-USB, Male | |
| Connector 2 | 5-Pin LEMO, Female | |
| Power | 5 VDC | |
| Mounting | 1 x 1/4"-20 Thumbscrew | |
| Packaging Info | ||
| Package Weight | 0.07 lb | |
| Box Dimensions (LxWxH) | 6.95 x 3.85 x 0.85" |
-
