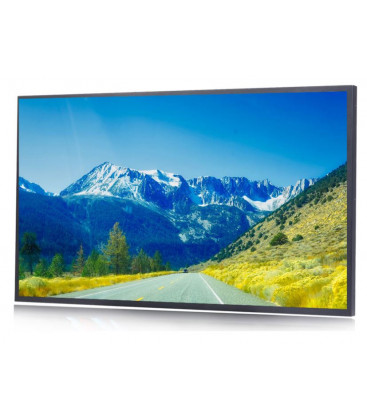

65" 4K monitor not only support single 4K picture,but also with unique Quad Split mode function, support 4 different signal format 1080P/1080i/720P/1080P on split windows. 65'' size monitor is perfect for news rooms, control rooms main media center and so on.
4K Signal
KUM-6510W 4K 12G-SDI signal link supports 2 x 12G-SDI signals inputs and outputs(auto detected 6G/3G/HD/SD-SDI), utmost 4096 x 2160 P60 format,DVI-D input is compatiable to HDMI 2.0 signal.
3D LUT Color Calibration with Klein K10-A Probe
Compatible with Lightspace andCalman calibration software,Konvisionmonitors apply K10-A probe for color calibration. Known for its unparalleled speed, extremely sensitive and color accurate, the Klein K10-A has long been regarded as the industry standard in LCD calibration.Except K10-A probe,Konvision monitors are also workable with universal colorimeters including CA210, CA310, CS200, CR100, CR250, Klein K10A, X-rite i1 Display OEM.
High Dynamic Range(HDR) Display
Konvison 8K/4K series and FHD KVM-6X series monitors support HDR display function. HDR's adjustable modes includes PQ(ST2084), HLG and S-Log3 with Rec2020 color gamut. It can reproduce a greater dynamic range of luminosity and provides extremely high level of picture quality and image reproduction.
Black Stretch
Increasing the brightness and contrast ratio in the dark areas, Black Stretch function can show more shadow details of the input signal. Black Stretch can be used for double checking the shadow detail of the dark areas to avoide any missing infomation.
Waveform, Waveform Alarm Function, Vectors, Histogram
Both SDI and HDMI support Waveform, Vectorscope, Histogram. All above mentioned features manage to be displayed on screen at the same time.The waveform alarm function provides a more clearly and professional luminance profile. When luminance reaches or exceeds the preset value, the over exposure areas will be marked with red.
Focus Assist
Focus assist aids the camera operator in obtaining the sharpest possible picture,it will mark with red color where the sharp edges appear.
False Color
This function is to aid in the setting of camera exposure.Blue,cyan,green,yellow,orange and red color will display in turn to show the luminance or brightness values of the image from darkest to brightest. It enables proper exposure to be achieved without applying costly and complicated external test equipment.
Zebra
Display the overexposed areas(too bright) of the image with zebra stripes,aids the camera operator to control the luminance, in order to avoid overexposure.This feature is very effective for proper exposure.
Picture Flip
Horizontal picture flip function allows negative image,is very useful in the studios/virtual studios,such as weather forecast, news and other programs,etc.
Features
- 3840x2160 resolution,10Bit IPS panel
- 3D LUT Color calibration with LightSpace & CalMAN
- User 3D LUT file import
- 2x 3G-SDI inputs and 2x 3G-SDI outputs
- 4K Mode,Quad-Split Mode,FHD single picture mode
- 4K 2 Sample Interleave (2SI)&SQD
- Waveform,Vectorscope
- False Color,Zebra
- Scan,Markers,Blue Only/Mono Only
- LED Tally Light
- 12 Bit Video Processing
- Color space: REC709/EBU/DCI-P3 D65/DCI-P3/REC2020/USER1/USER2/Bypass
- 2x12G-SDI inputs (12G/6G/3G/HD/SD-SDI auto detect)and 2x 12G-SDI loopout
- 1x DVI input, compatible with HDMI2.0 signal
- Quad-Split supports 4 different signal formats
- HDR(High Dynamic Range)supports PQ,HLG
- Picture Flip,Focus Assist
- Audio Level Meter(16CH for SDI,2CH for HDMI)
- Dynamic UMD(TSL3.1/4.0)
- Ethernet/GPI remote control
|
Specifications |
|
LCD |
|
|
Display Size |
65" |
|
Resolution |
3840×2160 |
|
Aspect Ratio |
16:9 |
|
Viewing Angle |
178°(H) / 178°(V) |
|
Pixel Pitch |
0.372×0.372(mm) |
|
Color Depth |
1.07B |
|
Back Light |
LED |
|
Brightness |
500cd/m² |
|
Contrast Ratio |
1100:1 |
|
Display Size |
65" |
|
Input |
|
|
4 × BNC |
2x12G/6G/3G/HD/SD-SDI inputs,2x3G/HD/SD-SDI inputs |
|
1 × DVI |
DVI,compatible with HDMI 2.0 signal |
|
Output |
|
|
4 × BNC |
2x12G/6G/3G/HD/SD-SDI outputs,2x3G/HD/SD-SDI outputs |
|
Compatible SDI Formats |
|
|
SMPTE ST 2081 |
2160p(60/59.94/50) |
|
SMPTE ST 2082 |
2160p(30/29.97/25/24/23.98) |
|
SMPTE-425M-A/B |
4:2:2 YCbCr 10-bit: 1080P(60/59.94/50) 4:4:4 YCbCr/RGB 10-bit: 1080i(60/59.94/50) 4:4:4 YCbCr/RGB 12-bit: 1080p(30/29.97/25/24/23.98/ 30sF/29.97sF/25sF/24sF/23.98sF) 4:2:2 YCbCr 12-bit: 1080i(60/59.94/50), 1080p(30/29.97/25/24/23.98/ 30sF/29.97sF/25sF/24sF/23.98sF) 4:4:4 YCbCr/RGB 10-bit: 720P(60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98) |
|
SMPTE-274M |
1080i(60/59.94/50) |
|
SMPTE-296M |
720P(60/59.94/50/30/29.97/25/24/23.98) |
|
SMPTE-260M |
1035i(60/59.94) |
|
SMPTE-125M |
480i(59.94) |
|
ITU-R BT.656 |
576i(50) |
|
Audio In / Out |
|
|
SDI Audio In |
64CH aduio disembedded/Display any 4 channels |
|
Audio Meter Display |
Vertical/Horizontal Audio Level Meter Display |
|
Audio Headset Output |
3.5mm Headset Jack |
|
Built-in Speaker |
2.5W×2 |
|
General |
|
|
Operating Temperature |
-10°~ 50° |
|
Input Voltage |
AC:100-240V 50/60Hz |
|
Power-Saving Mode |
Turn off unimportant key Automatically if no signal input |
|
VESA Installation |
ESA MIS-D(200X200mm) |
|
Shell Materials |
Aluminum on Front-Shell Rust-Proof iron on Back-Shell |
|
Power Consumption |
130W |
-
