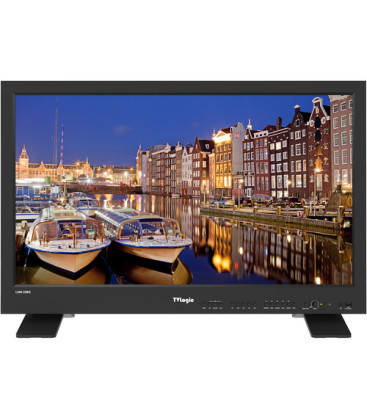

TVLogic LUM-328G - 31.5" UHD 4K SDI/HDMI LCD Monitor
Take 12G-SDI, 3G-SDI, and HDMI video sources up to UHD 4K and output them to this 31.5" UHD...
Mehr lesen
Mehr Infos
|
Specifications |
|
| Display | ||
| Panel Type | LCD | |
| Display Size | 31.5" / 80.0 cm | |
| Screen Area | 27.45 x 15.44" / 697.31 x 392.23 mm | |
| Resolution | 3840 x 2160 | |
| Aspect Ratio | 16:9 | |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
|
| Touchscreen | No | |
| Maximum Brightness | 1000 nits / cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Dot Pitch | 0.18159 x 0.18159 mm | |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | |
| HDR Compatibility | Hybrid Log Gamma | |
| Pixels Per Inch (ppi) | 139 ppi | |
| Real-Time LUT Monitoring | SDR | |
| Image Controls | Blue Only, Focus Assist, H/V Delay, Vectorscope, Waveform | |
| Inputs / Outputs | ||
| Video I/O | 2 x BNC (12G-SDI) Input 2 x BNC (12G-SDI) Output 2 x BNC (3G-SDI) Input 2 x BNC (3G-SDI) Output 1 x HDMI 2.0 Input |
|
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output 1 x 1/8" / 3.5 mm Line Input |
|
| Built-In Speaker | None | |
| Other I/O | 1 x USB-A (Firmware) Input 1 x RJ45 (GPI) Input 1 x RJ45 (LAN) Input 1 x RJ45 (RS-422) Input 1 x RJ45 (RS-422) Output |
|
| Media/Memory Card Slot | None | |
| Wi-Fi | None | |
| Bluetooth | None | |
| Mobile App Compatible | *As of February, 2023: Check with manufacturer for the most up-to-date compatibility | |
| Format Support | ||
| Video Format | HDMI (10/12-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60 1080p: 60 1080i: 60 720p: 60 480p: 60 576p: 50 SDI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 30/29.97/25/24/23.98 720p: 60/59.94/50 576i: 50 480i: 59.94 |
|
| Video Standard Compliance | SMPTE 125M/260M/274M/296M/425M-A/425M-B/ST-2036-1/ST-2081/ST-2082 ITU -R BT.656 |
|
| Power | ||
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz | |
| DC Input Power | 12 VDC | |
| Power Consumption | 162 W (Maximum) | |
| Mounting | ||
| Mounting-Hole Pattern | 400 x 200 mm | |
| Environmental | ||
| Operating Temperature | 32 to 113°F / 0 to 45°C | |
| Storage Temperature | -4 to 140°F / -20 to 60°C | |
| General | ||
| Dimensions | 29.9 x 19.1 x 4.2" / 760.3 x 485.3 x 107.1 mm 29.9 x 20.7 x 9.6" / 760.3 x 525.9 x 245 mm, Including Stand |
|
-
