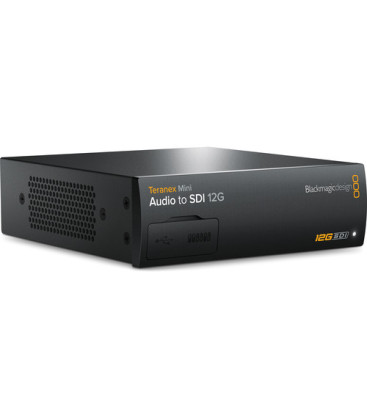

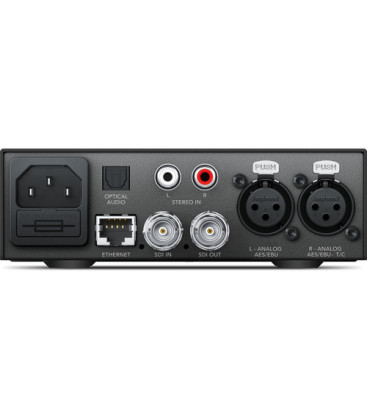

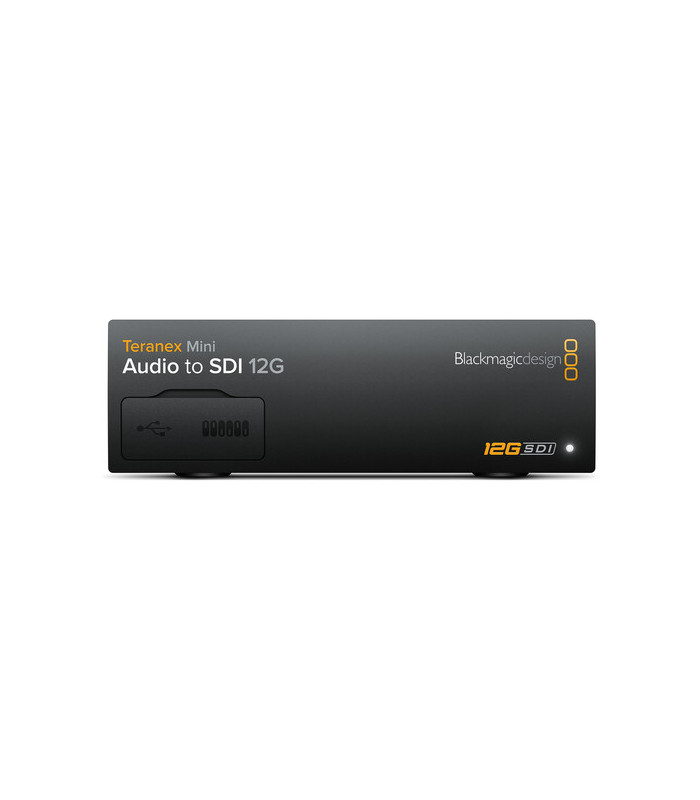

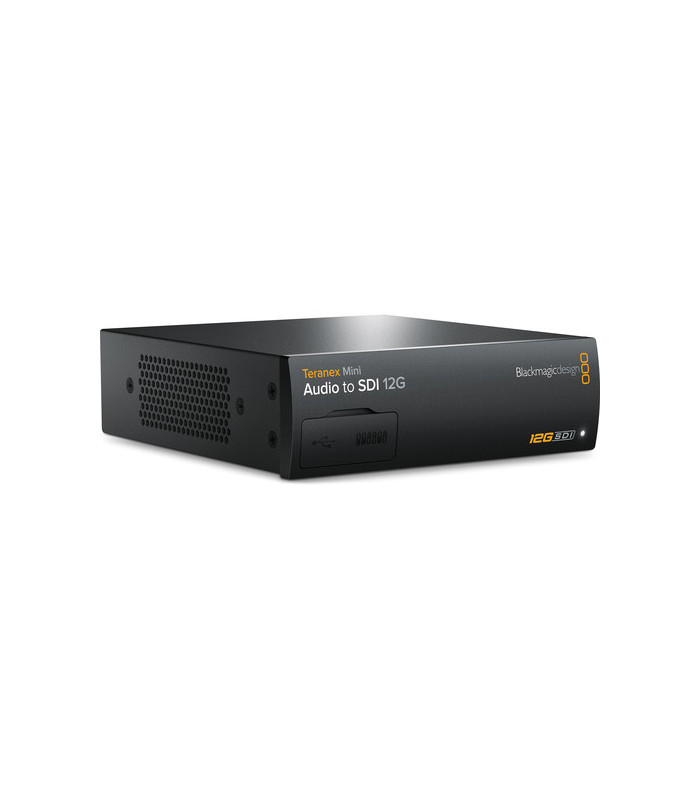

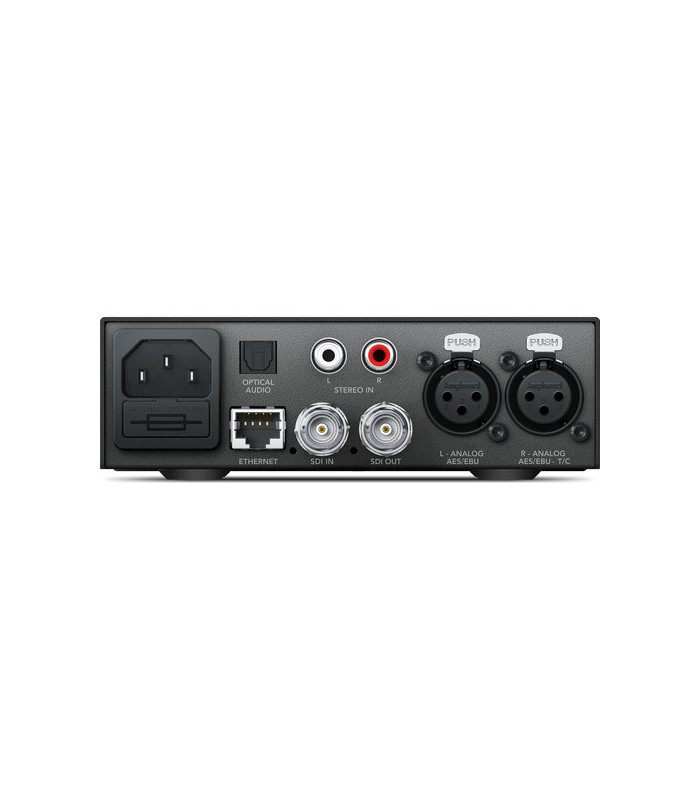

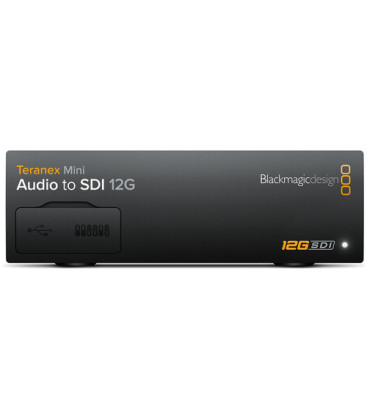

Blackmagic BM-CONVNTRM-CB-AUSDI - Teranex Mini - Audio to SDI 12G
Mehr Infos
|
Specifications |
|
| Inputs/Outputs | ||
| Video Inputs | 1x BNC (12G-SDI) | |
| Audio Inputs | 2x XLR 3-Pin Analog Female 1x 2RCA Analog Female 1x TOSLINK S/PDIF Female |
|
| Video Outputs | 1x BNC (12G-SDI) | |
| Audio Outputs | No | |
| Other I/O | 1x XLR 3-Pin Timecode Input (Shared With Right XLR Input) 1x RJ45 Control, Firmware, PoE |
|
| Expansion Slots | No | |
| Format Support | ||
| Input Audio Format | Analog S/PDIF AES/EBU |
|
| Output Video Format | SDI DCI 4K 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 480i / 525 lines |
|
| Embedded Audio | SDI: 16-Channel | |
| HDR Support | Not Specified by Manufacturer | |
| OS Compatibility | Windows 10 (64-Bit Only) macOS 10.15 to 11.1 |
|
| Power | ||
| Power I/O | 1x IEC C14 (100 to 240 VAC ) Input | |
| PoE Support | PoE+ 802.3at | |
| Power Consumption | 16 W | |
| Environmental | ||
| Operating Temperature | 32 to 72°F / 0 to 40°C | |
| Storage Temperature | -4 to 140°F / -20 to 60°C | |
| Operating Humidity | 0 to 90% () | |
| Packaging Info | ||
| Package Weight | 1.9 lb | |
| Box Dimensions (LxWxH) | 10.25 x 7 x 2.55" | |
