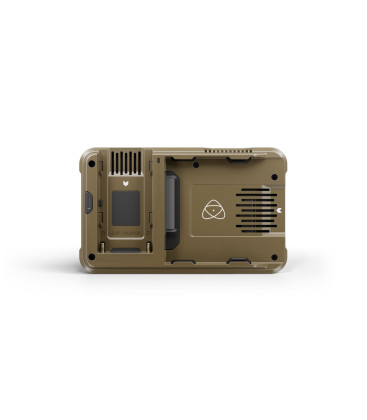

Atomos ATOMNJA004 - Ninja 5.2" Recording Monitor
Successors to the Ninja V and is a compact, rugged 5.2" monitor built for the rigors of...
Leggi tutto
Dettagli
|
Specifications |
|
| Physical Specifications | ||
| Dimensions: (W x H x D mm) | 151 x 91.5 x 31mm | |
| Weight: | 360g / 12.7oz | |
| Mount points: | 1 x anti-rotation 1/4-inch / 3/8-inch top and bottom | |
| Environmental | Ambient operating temperature Up to 40 degrees Celsius | |
| Construction & Control | ||
| Body: | Aluminium with ABS plastic | |
| Cooling: | Actively controlled fan and heat sink | |
| Tally light: | Rear and front | |
| Multi-function button Power / lock screen | ||
| AtomXpansion slot | ||
| Power | ||
| Input voltage: | 6.2V to 16.8V | |
| Operating power: | 5.8-7.2v (Battery) or min 30W via USB C PD cable | |
| Compatible batteries: | NPF L series | |
| Built in battery: | No | |
| Battery run time Record 5200mAh - up to 2hrs (monitor & record 4K 60p) | 7800mAh - up to 3hrs (monitor & record 4K 60p) DC in connector Via DC jack on battery eliminator DTAP Via battery eliminator and optional DTap to DC cable |
|
| Display | ||
| Touchscreen: | SuperAtom IPS panel (capacitive touch) | |
| Size: | 5.2-inch | |
| Resolution: | 1920 x 1080 | |
| PPI | 427 | |
| Bit depth | 10-bit (8+2 FRC) | |
| Backlight Type Edge lit | ||
| Brightness (cdm2 / Nits) 1000 | ||
| Black Level (cdm2 / Nits) | ||
| Aspect ratio 16:09 | ||
| Color Gamut Rec.709 | ||
| Calibration support Atomos Calibrator with Calibrite ColorChecker Display Pro & ColorChecker Display Plus | ||
| Color Pipeline | ||
| Gamma Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, | ||
| Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 | ||
| / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / | ||
| LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, | ||
| JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm | ||
| Flog, PQ (HDR10), HLG, Nikon N-Log | ||
| Gamut Bt2020, DCI P3, PDCI p3 65 Sony SGamut / SGamut3 / SGamut3.cine / | ||
| Canon Cinema / DCI P3 / DCI P3+ / BT2020 | ||
| Panasonic V Gamut | ||
| Arri Alexa Wide Gamut | ||
| Rec709 | ||
| JVC LS300 | ||
| Red DragonColor / DragonColor2 / RedColor2 / | ||
| RedColor3 / RedColor4 / RedWideGamut | ||
| 3D LU+A76T Display .Cube Format | ||
| 3D LUT Down Stream Loop out | ||
| 3DLUT 50/50 | ||
| Monitoring Modes Native / HLG / PQ / 3D LUT | ||
| HDR output Conversion Log / HDR to HLG / PQ / Dolby Vision | ||
| Video Input | HDMI 1 x HDMI (2.0) 4Kp60 HDMI RAW Apples ProRes RAW up to 6K with compatible cameras SDI Optional Via Atomos Connect module SDI RAW Optional Via Atomos Connect module Bit Depth 8/10-bit video / RAW up to 16-bit Video Chroma Subsampling 4:2:2 HDCP copy protection Not supported |
|
| Metadata | HDMI RAW - white balance, exposure index, shutter speed/angle, Iris F stop, ISO, gamma, gamut | |
| Video Output | HDMI 1 x HDMI (2.0) 4Kp60 RJ45 / GigE Optional Via Atomos Connect module Wi-Fi 6 Optional Via Atomos Connect module Video Chroma Subsampling 4:2:2 Bit Depth 10-bit video |
|
| Web Streaming | ||
| USB UVC Optional Via Atomos Nexus 4K or AtomX Cast | ||
| RJ45 / GigE Optional Via Atomos Connect module | ||
| RTMP / S Optional Via Atomos Connect module | ||
| Video Signal Conversion | HDMI to SDI Optional Via Atomos Connect module SDI to HDMI Optional Via Atomos Connect module |
|
| Audio In/Out | ||
| Audio Quality 24/48kHz | ||
| Audio Codec PCM | ||
| HDMI 8ch 24-bit, input dependent | ||
| SDI 12ch 24-bit, input dependent | ||
| Analogue Audio in 3.5mm 2ch. | ||
| Analogue Audio Out | ||
| Speakers | ||
| Headphone out 3.5mm 2ch. | ||
| Audio input delay User definable from menu | ||
| Timecode / Sync / Control | ||
| Embedded HDMI and SDI | ||
| Time of day Yes, Time and Date | ||
| Reference input | ||
| LTC Optional Via Atomos Connect module | ||
| Genlock Optional Via Atomos Connect module | ||
| Wireless AirGlu RF Server and Client Optional Via Atomos Connect module | ||
| Wireless AirGlu BT Server Optional Via Atomos Connect module | ||
| Resolution & Frame Rates (Record, Monitor & Playback) | ||
| Supported base resolution & FPS | ||
| 6K RAW Only up to 30p via HDMI | ||
| 4K DCI 23.98/24/25/29.9/30/50/59.94/60p | ||
| 4K UHD 23.98/24/25/29.9/30/50/59.94/60p | ||
| 2K DCI 2046 x 1080 Optional via AtomX SDI module | ||
| Anamorphic 3.5k: RAW up to 60p (from supported cameras only) | ||
| FHD 1920 x 1080 Progressive 23.98/24/25/29.9/30/50/59.94/60/100/120p | ||
| FHD 1920 x 1080 PsF converted to P and looped out PsF | ||
| FHD 1920 x 1080 Interlaced 23.98/24/25/29.9/30/50/59.94/60i | ||
| 1280 x 720p 50/59.94/60p | ||
| SD PAL / NTSC | ||
| Recording CODEC | ||
| Apple ProRes Raw ProRes RAW, HQ | ||
| Apple ProRes LT, 422, 422HQ | ||
| Avid DNxHD DNxHD 220x,220,145,36 | ||
| Avid DNxHR LB, SQ, HQ, HQX. | ||
| H.265 LQ,MQ,HQ,XQ in 8/10Bit, 4 2 2 and 4 2 0 | ||
| Playback | ||
| Playlist, Create customer play lists from full or sub clips | ||
| Loop, with user customisable in / out markers | ||
| Apple ProRes Raw, recorded clips | ||
| Apple ProRes, with Linear PCM audio | ||
| Avid DNx, with Linear PCM audio | ||
| H.265 | ||
| Recording functions | ||
| Pre-roll record (HD 8s, 4K 2s) - Not available in RAW | ||
| Timelapse | ||
| Simultaneous proxy record | ||
| Multi Input / Switching | ||
| Multiple HDMI input Optional via AtomX Cast | ||
| Multiview Display Optional via AtomX Cast | ||
| Multiview Ouput Optional via AtomX Cast | ||
| Picture in Picture (PIP) Optional via AtomX Cast | ||
| Graphic overlays Optional via AtomX Cast | ||
| Input transitions Optional via AtomX Cast | ||
| Supported media | ||
| Master Caddy I Not compatible | ||
| Master Caddy II For 2.5-inch hard drives in MasterCaddy II | ||
| Master Caddy III For 2.5-inch hard drives in MasterCaddy III (needed for Atomos Connect) | ||
| SSDmini Native size and fit | ||
| CFAST II With supported cards via optional SSDmini CFAST II Adaptor | ||
| File Naming Unit Name - Scene/Shot/Take | ||
| File System ExFAT | ||
| On screen tools | ||
| Waveform Yes, 3 size / Position | ||
| RGB parade Yes, 3 size / Position | ||
| Vector scope Yes, 2 size / Position | ||
| 1 x Zoom. 1:1 Pixel mapping for 4K | ||
| 2 x Zoom | ||
| Focus peaking Colour selected / threshold setting / colour | ||
| / Mono / edges only | ||
| Atomos False color Yes, with Scale | ||
| ARRI False color | ||
| EL Zone | ||
| Zebra, Adjustable | ||
| Isolate color channel Blue Only | ||
| Cine Frame Guides 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3 | ||
| Social Frame guides 9:16, 1:1, 191:1, 4:5 | ||
| Onion Skin | ||
| Safe areas Action and Graphic | ||
| Grid markers 9 grid | ||
| Anamorphic desqueeze 1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x | ||
| Display Flip Vertical Only | ||
| Onboard Signal Processing | ||
| Pulldown removal 24/25/30pSF > 24/25/30p (2:2 pulldown) | ||
| 60i > 24p (3:2 pulldown) | ||
| 4K UHD downscale for HD Loop out - 4K UHD to FHD | ||
| DCI Crop Loop out - 17:9 to 16:9 Crop | ||
| Remote Control | ||
| HDMI Auto HDMI Trigger, Supported Protocols - Canon, Sony, | ||
| Atomos Open Standard | ||
| SDI SDI trigger camera selectable with Atomos Connect | ||
| Serial 2.5mm Jack LANC control and calibration via | ||
| optional USB to serial cable | ||
| AirGlu BT Optional Via Atomos Connect module | ||
| AirGlu RF Optional Via Atomos Connect module | ||
| External Device Control | Serial 2.5mm Jack Camera control for supported cameras via Optional USB to Serial Cable Bluetooth LE Optional Via Atomos Connect module Wireless RF Optional Via Atomos Connect module |
|
| Supported Applications | XML Cut tag EDL in FCPX XML Apple ProRes Raw Apple FCPX, Adobe Premiere, After Effects, Avid Media Composer, GrassValley Edius, Assimilate Scratch, Baselight Film Light. Video Codecs All Applications with support for Apple ProRes and Avid DNx in .MOV wrapper |
|
