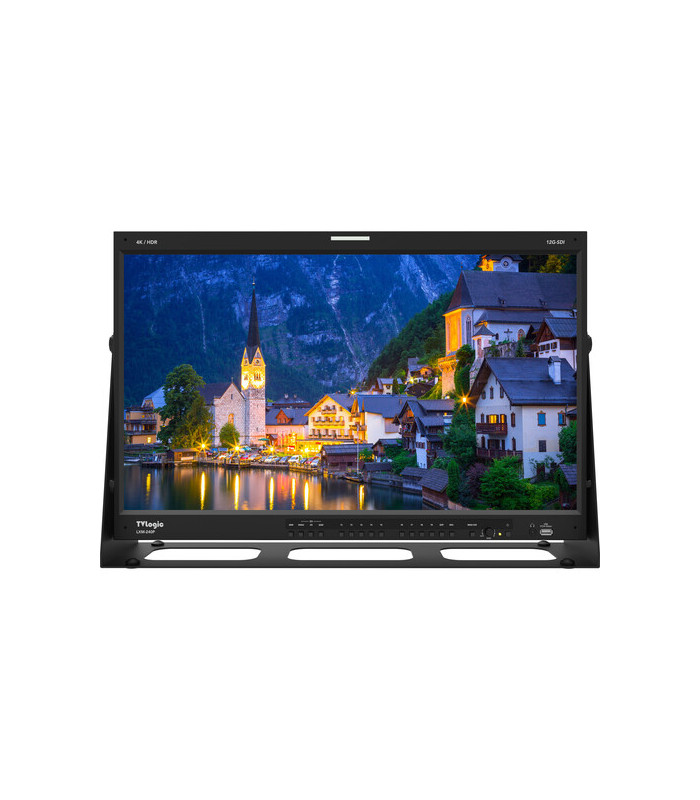

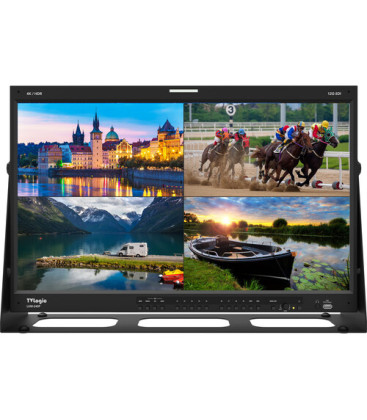

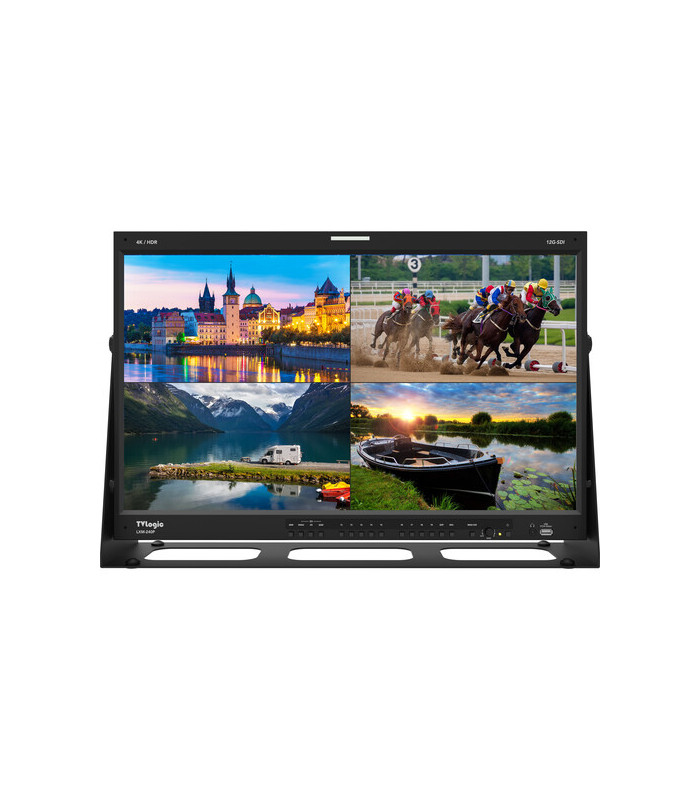

TVLogic LXM-240P - 23.8" DCI/UHD 4K Monitor
incorporates 12G-SDI Input(x4), 12G-SDI Output(x4), Reference(External Sync) input, HDMI 2.0...
Leggi tutto
Dettagli
|
Specifications |
|
| Display | ||
| Panel Type | IPS-Type LCD | |
| Display Size | 23.8" / 60.5 cm | |
| Screen Area | 20.70 x 11.64" / 52.7 x 29.65 cm | |
| Resolution | 3840 x 2160 | |
| Aspect Ratio | 16:9 | |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
|
| Touchscreen | No | |
| Maximum Brightness | 1000 nits / cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Dot Pitch | 0.137 x 0.137 mm | |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | |
| HDR Compatibility | Hybrid Log Gamma | |
| Pixels Per Inch (ppi) | 185 ppi | |
| Color Gamut | 98% DCI-P3 | |
| Real-Time LUT Monitoring | SDR, HDR | |
| Image Controls | Histogram, Vectorscope, Waveform | |

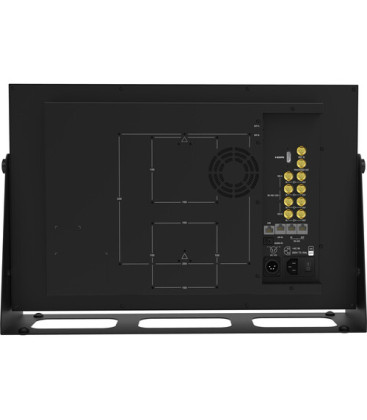

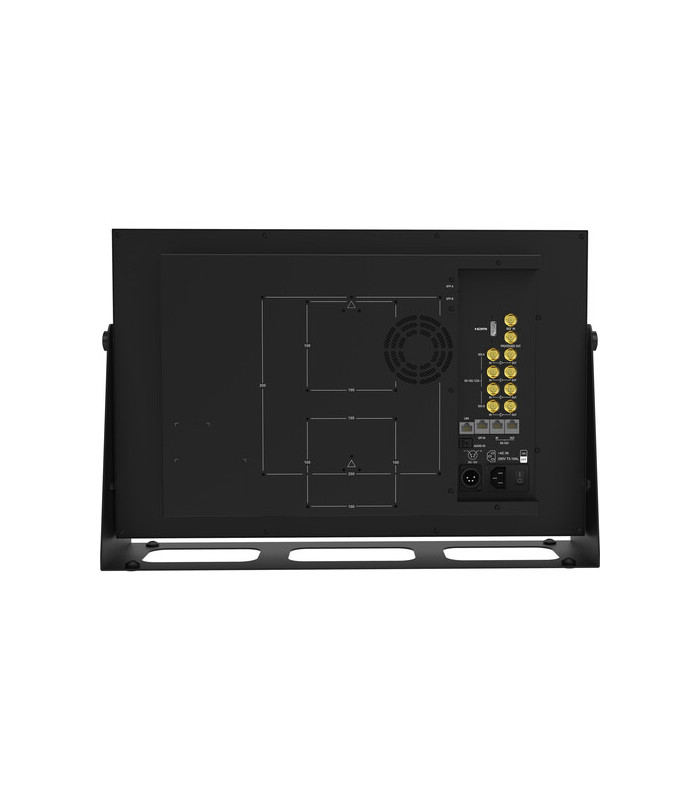

| Inputs / Outputs | ||
| Video I/O | 4 x BNC (12G-SDI) Input 1 x HDMI 2.0 Input 4 x BNC (12G-SDI) Loop Output 1 x BNC (Unspecified SDI) Output |
|
| Audio I/O | 1 x 1/8" / 3.5 mm Line Input | |
| Built-In Speaker | None | |
| Power I/O | 1 x XLR 4-Pin (12 VDC) Input 1 x IEC Input |
|
| Other I/O | 1 x BNC (Reference) Input 1 x RJ45 (LAN) 1 x RJ45 (GPI) Input 1 x RJ45 (RS-422) Input 1 x RJ45 (RS-422) Output |
|
| Expansion Slots | 2 x SFP Slot | |
| Media/Memory Card Slot | None | |
| Wi-Fi | None | |
| Bluetooth | None | |
| Mobile App Compatible | No *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
|
| Format Support | ||
| Video Signal Conversion | HDMI to SDI SFP+ to SDI |
|
| General | ||
| Dimensions | 21.75 x 14.19 x 3.78" / 55.25 x 36.04 x 9.59 cm 23.07 x 15.28 x 5.9" / 58.61 x 38.82 x 15 cm, Including Stand |
|
| Weight | 22.0 lb / 10 kg | |
-
