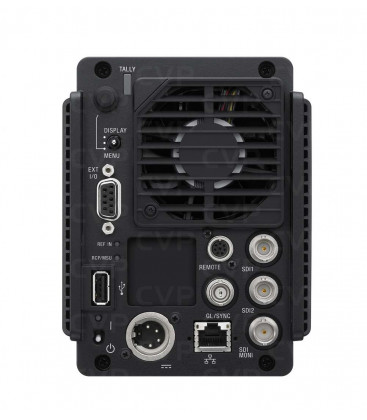

Sony HDCP31/OLPF - HDC-P31 + Optical Low Pass Filter 1-856-731-22
Dettagli
Sony HDCP31/OLPF - HDC-P31 + Optical Low Pass Filter 1-856-731-22
New standard for Premium HD
Utilising Sony’s state-of-the-art imaging technology, HDC-P31 delivers superb HD image with exceptional high sensitivity of F12/F13(*1) and impressive low noise of 62dB. Adopting same CMOS technologies, the camera can ensure consistent picture quality, system and workflow with Sony’s HDC series of system cameras. Together with its compact and lightweight design, it further expands the applications such as in studio, events, faith as well as hard-to-access shootings on crane, rail or dolly.
Enhanced remote features
Remote access via WEB UI(*2) enables menu setting, status monitoring, log files and updating the firmware for the camera when installed in hard-to-access sites. The back focus of the supported lens(*3) can be adjusted remotely from the Sony master setup unit (MSU) or remote control panel (RCP). And IP tally supports flexible and longer connection via network cable. These help to achieve more efficient workflow.
HDC-P31 supports HDR by S-Log3 / HLG and Sony’s SR Live workflow realising simultaneous production in HDR and SDR. The camera also supports SR Live metadata, which is embedded in the SDI signal feed and enables to maintain the quality of both HDR and SDR signals. The camera meets increasing demand of HDR production across the globe.
*1 F12 at 1080/59.94p, 720/59.94p, F13 at 1080/50p, 720/50p
*2 To be supported in 2020 winter.
*3 Need to ask nearest Sony sales office.
Utilising Sony’s state-of-the-art imaging technology, HDC-P31 delivers superb HD image with exceptional high sensitivity of F12/F13(*1) and impressive low noise of 62dB. Adopting same CMOS technologies, the camera can ensure consistent picture quality, system and workflow with Sony’s HDC series of system cameras. Together with its compact and lightweight design, it further expands the applications such as in studio, events, faith as well as hard-to-access shootings on crane, rail or dolly.
Enhanced remote features
Remote access via WEB UI(*2) enables menu setting, status monitoring, log files and updating the firmware for the camera when installed in hard-to-access sites. The back focus of the supported lens(*3) can be adjusted remotely from the Sony master setup unit (MSU) or remote control panel (RCP). And IP tally supports flexible and longer connection via network cable. These help to achieve more efficient workflow.
HDC-P31 supports HDR by S-Log3 / HLG and Sony’s SR Live workflow realising simultaneous production in HDR and SDR. The camera also supports SR Live metadata, which is embedded in the SDI signal feed and enables to maintain the quality of both HDR and SDR signals. The camera meets increasing demand of HDR production across the globe.
*1 F12 at 1080/59.94p, 720/59.94p, F13 at 1080/50p, 720/50p
*2 To be supported in 2020 winter.
*3 Need to ask nearest Sony sales office.
|
Specifications |
|
| General | 20°C to +45°C (.4°F to +113°F) | |
| Power requirements | DC 10.5 V to 17 V | |
| Operating temperature | -20°C to +45°C (-4°F to +113°F) | |
| Storage temperature | -20°C to +60°C (-4°F to +140°F) | |
| Mass | 2.3 kg (5 lb 1 oz) | |
| 1080/50i, 1080/59.94i, 720/50p, 720/59.94p | ||
| Camera section | (1080/23.98PsF, 1080/24PsF, 1080/25PsF, 1080/29.97PsF, 50/59.94p, 4K/50p, 4K/59.94p: option) | |
| Imager | three-chip 2/3-inch type HD CMOS with global shutter | |
| Effective resolution (H x V) | HD: 1920 × 1080 | |
| Signal format | 1080/50i, 1080/59.94i, 720/50p, 720/59.94p (1080/23.98PsF, 1080/24PsF, 1080/25PsF, 1080/29.97PsF, 50/59.94p: option) |
|
| Spectrum system | F1.4 prism | |
| Lens mount | Sony bayonet mount | |
| Built-in filters | ND: 1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND ECC: B:3200K, C:4300K, D:6300K | |
| Sensitivity (at 2000 lx, 3200K, 89.9% reflectance) | F12 (at 1080/59.94i, 1080/59.94p), F13 (at 1080/50i, 1080/50p) | |
| Noise level | 62 dB | |
| Horizontal resolution | 1,000 TV lines (at center) | |
| Shutter speed | 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec (1080/59.94i) 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec (1080/50i) |
|
| HD: SMPTE 274M, tri-level sync, 0.6 Vp-p, 75 Ω | ||
| Inputs/Outputs | SD: Black burst (NTSC: 0.286 Vp-p, 75 Ω/PAL: 0.3 Vp-p, 75 Ω) | |
| Genlock input | BNC (x1) HD: SMPTE 274M, tri-level sync, 0.6 Vp-p, 75 Ω SD: Black burst (NTSC: 0.286 Vp-p, 75 Ω/PAL: 0.3 Vp-p, 75 Ω) |
|
| SDI 1 output | BNC (x1), 3G/1.5G-SDI | |
| SDI 2 output | BNC (x1), 3G/1.5G-SDI | |
| SDI MONI | BNC (x1), HD-SDI | |
| EXT I/O | D-sub 15-pin (female) (x1) | |
| Remote | 8-pin (x1) | |
| Lens | 12-pin (x1) | |
| LAN | RJ-45 (x1), 10BASE-T, 100BASE-TX | |
| Supplied accessories | Tally number plate (1set), CD-ROM (1) |
-
