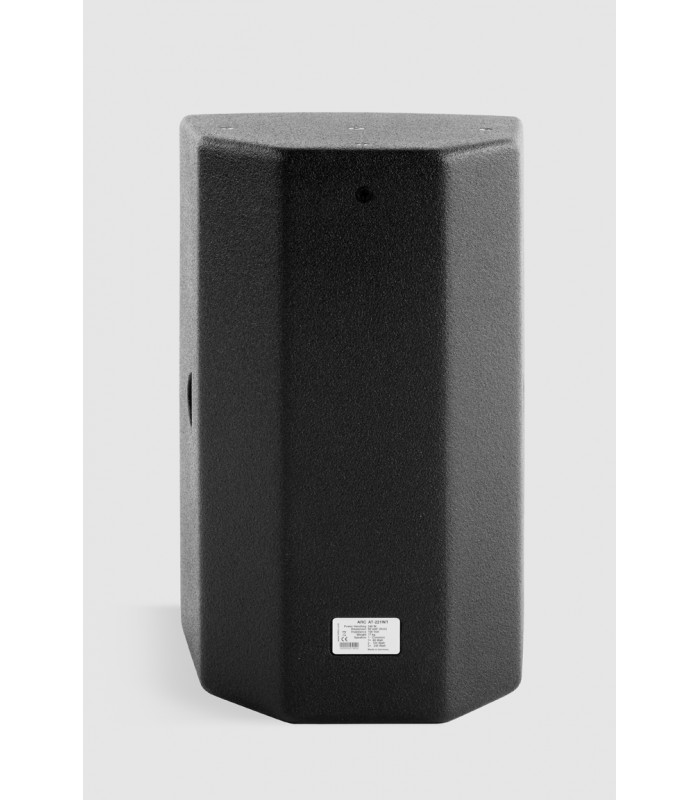

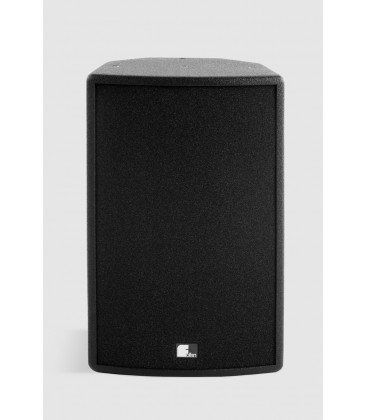

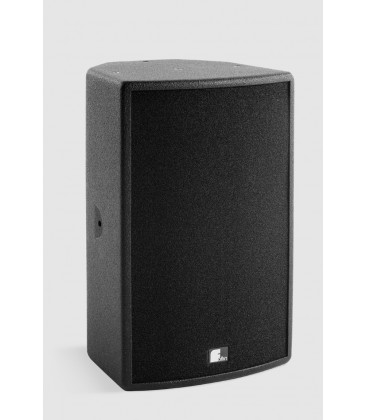

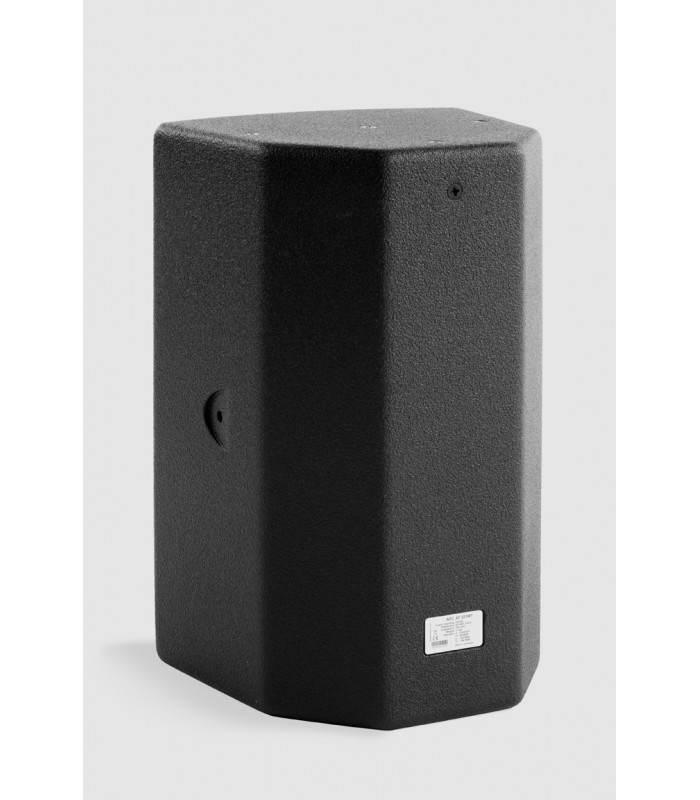

Fohhn AT-221w Top - 300W speaker, black, 90 ° x 60 °
Fohhn 300W speaker, black, 90 ° x 60 °
The AT-221w is a weatherproof speaker system specially developed for outdoor applications. Its compact dimensions, excellent power output and outstanding speech intelligibility are impressive. The tough and weatherproof VSM housing is fitted with impregnated 10”/1 CD high-performance speakers. The speakers are time-aligned and well protected by a robust metal protective grille on the front. A special sound-transparent filter foam lining also provides effective protection against water and dust. 2 speakon sockets are installed on the bottom of the housing. A precision-made crossover with electronic high-frequency protection circuit is also integrated. The inside of the housing is reinforced throughout with steel brackets and equipped with 5 M8 threaded inserts for safe installation.
Connectors
2x Neutrik NL4 Speakon connectors in bottom panel or watertight cable gland with 3m of wire.
Applications
Sound production in open or damp environments such as sports arenas, stadiums, ski huts etc.
Weatherproof high-performance 2-way passive speaker
Weatherproof high-performance 2-way passive speaker, equipped with one 10“-sub-mid speaker and one 1“- HF-driver on a 90° revolvable CD horn in time-aligned speaker arrangement. The speaker is temporary able to work under 1200 W and generates acoustic pressure of maximal 129 dB. In a wide frequency range of 70 Hz to 20 kHz, the speaker has a defined dispersion of 90° x 60° or 60° x 40° (h x v). High-tensile and weatherproof VSM enclosure, strutted with internal steel brackets to maintain safety instructions. Weatherproof polyurethane-coating with impregnated speaker membranes, available in black. Optional available in all RAL colours. For the protection of the speaker chassis and the electronics, the enclosure is equipped with a ball impact resistant, extremely sound-permeable front grille, which is made of powder-coated steel and equipped with a moisture- and dust repellent acoustic foam in enclosure colour. Five M8 thread applications in ground, back and upper side are integrated to the admission of ring studs and system brackets. The loudspeaker system is optionally available with 100V technology in different performance classes up to 240 W. Connections: 2x Neutrik NL4 Speakon connectors in bottom panel or watertight cable gland with 3m of wire. All contacts exist twice, to connect very easy and safe to the next speaker. Specific brackets to assemble the system on ceilings, walls and traverses are available. Simulation data CAAD for ULYSSES and EASE are available.
|
Specifications |
|
Electro-acoustical features |
|
|
Acoustic design |
Passive loudspeaker, 2-way, vented, weather resistant |
|
Components |
10“ / 1“ on rotatable CD-horn, with self-resetting IPC[*]-HF protection |
|
Power rating (nominal) |
300 W |
|
Power rating (program) |
600 W |
|
Power rating (peak) |
1200 W |
|
Sensitivity |
101 db |
|
Maximum SPL |
131 db |
|
Frequency range |
70 Hz – 20 khz |
|
Nominal dispersion (h x v) |
90° x 60° |
|
Nominal impedance |
8 ohms |
|
Features |
|
|
Enclosure |
Weatherproof VSM cabinet, reinforced with steel braces |
|
Protection grille |
Ball impact resistant steel, powder coated finish |
|
Rigging points |
5x M8 thread |
|
Connections |
2x Neutrik NL4 Speakon connectors in the bottom panel watertight cable gland with 3m of wire |
|
Standard colours |
Scaratch-proof polyurethane coating, black |
|
Frontal design |
Acoustic foam in enclosure colour |
|
Weather protection |
Polyurethane coating with UV-resistant finish and water-repellant speaker cone impregnation |
|
Dimensions (W x H x D) |
Approx. 320 x 510 x 290 mm |
|
Optional features |
|
|
Integrated 100 V-transformer |
60/30/15 W or 120/60/30 W or 240/120/60 W |
|
Optional colours |
All RAL-colours |
|
Weather protection |
Scratch-proof plastic coating, impregnated speaker membranes |
-
