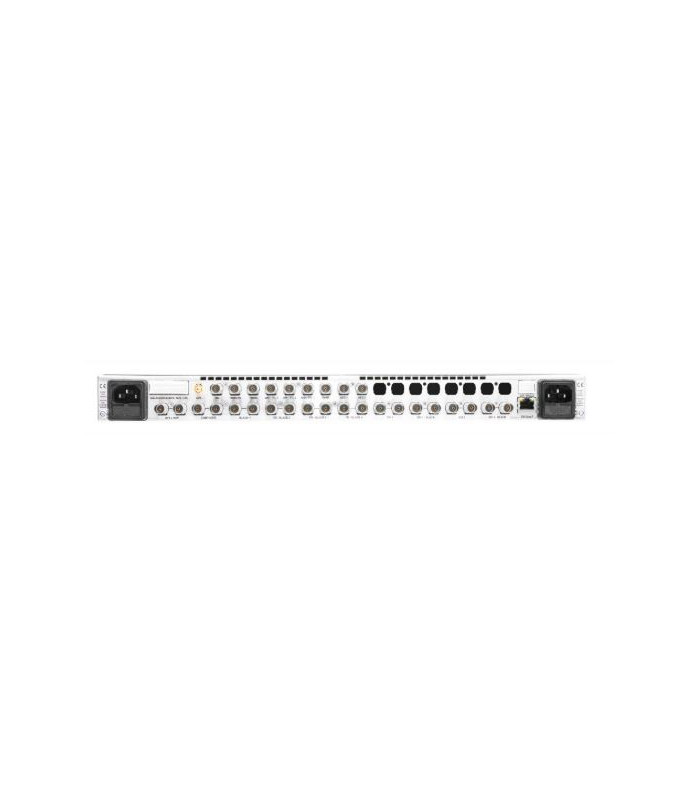

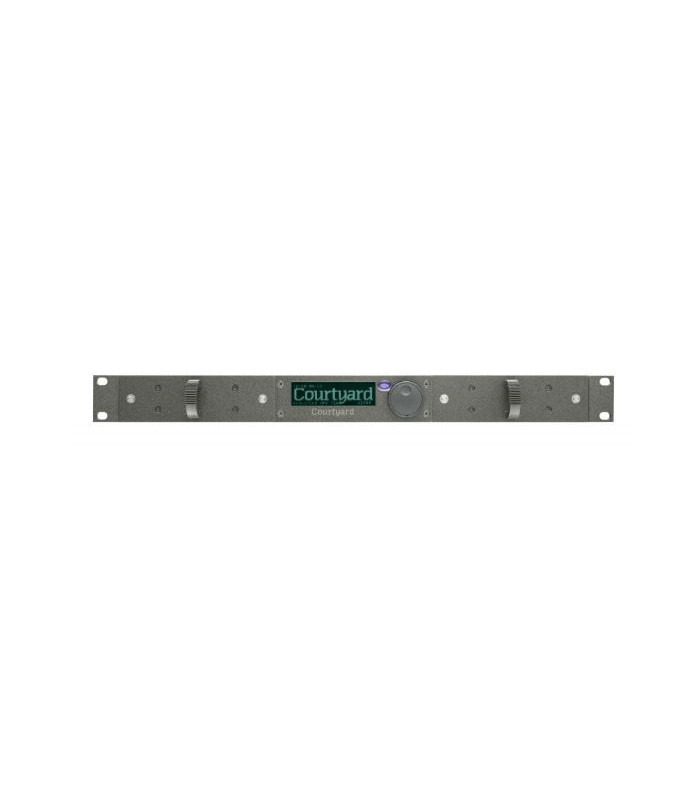

Courtyard CY460/06-035M - GPS receiver including antenna, 35m cable and connector kit
The CY460 is the ultimate sync, test pattern & time reference generator designed to satisfy all needs of broadcast serial digital (Standard, High Definition & 3G) and mixed digital/analogue, post-production, OB and other operational environments. It provides all the reference (Colour Black, Tri-Level Sync), timing and test signals, including LTC and VITC, together with analogue audio, AES audio & Wordclock, needed to satisfy any application in PAL, NTSC, SD SDI, HD SDI, & 3G SDI and mixed standard installations.
The CY460 is designed for use either as a master or, when genlocked, as a slave SPG. Where it is critical to have a backup SPG, the CY465 auto changeover unit complements the CY460. This can be user configured to monitor and changeover analogue video, digital video, timecode and AES/EBU digital audio signals.
|
Specifications |
|
Video Inputs (BNC) |
75 Ohm looping reference 10 MHz terminating reference |
|
Video Outputs (BNC) |
Analogue Colour Black (2) Std. Analogue Composite test (2) Std. Colour Black/Tri-Level (3 independent Pairs) SDI (SD (Std)/HD or 3G) Colour Black with embedded silence (2 independent pairs) SDI (SD (Std)/HD or 3G) Test Pattern with embedded tone (2 independent pairs) |
|
Balanced Audio/AES/LTC Outputs |
Molex Microclasp 30 pin Connector |
|
Unbalanced AES Audio |
AES (2) Std. DARS (1) Std. |
|
Controls and Indicators |
LCD Display, Rotary Knob & Switch |
|
Ethernet |
100Base T RJ45 Std. |
|
GPI/RS232 |
Microclasp 10 pin Std. |
|
GPS Antenna Input |
SMB Jack |
|
Timecode outputs |
LTC 4 (user select) Std. VITC (user select) Std. |
|
Colour black outputs |
|
|
Fsc stability |
±1 Hz over temperature range |
|
SCH phase |
0 degrees ±5 degrees |
|
Return loss |
>35dB to 5 Mhz |
|
Sync Pulse Generator |
|
|
Frequency |
4.43361875MHz after warm up (PAL) |
|
Stability |
±1Hz over temperature range |
|
Amplitude |
1Vp-p |
|
Return loss |
>35dB to 5 Mhz |
|
Pulse and pattern outputs |
|
|
Signals |
meet or exceed relevant EBU, CCIR and SMPTE specifications |
|
Genlock |
|
|
H range |
±4 fields (PAL). Moves all timing relative to the reference input |
|
Subcarrier |
0 to 360 degrees |
|
Mechanical |
|
|
Height |
1 rack unit |
|
Width |
19” rack mounting |
|
Depth |
405 mm (overall) |
|
Weight |
6 Kg (unpacked) |
|
Voltage |
Auto ranging 100 to 240V AC, 50/60Hz |
|
Power |
21 Watts maximum |
-
