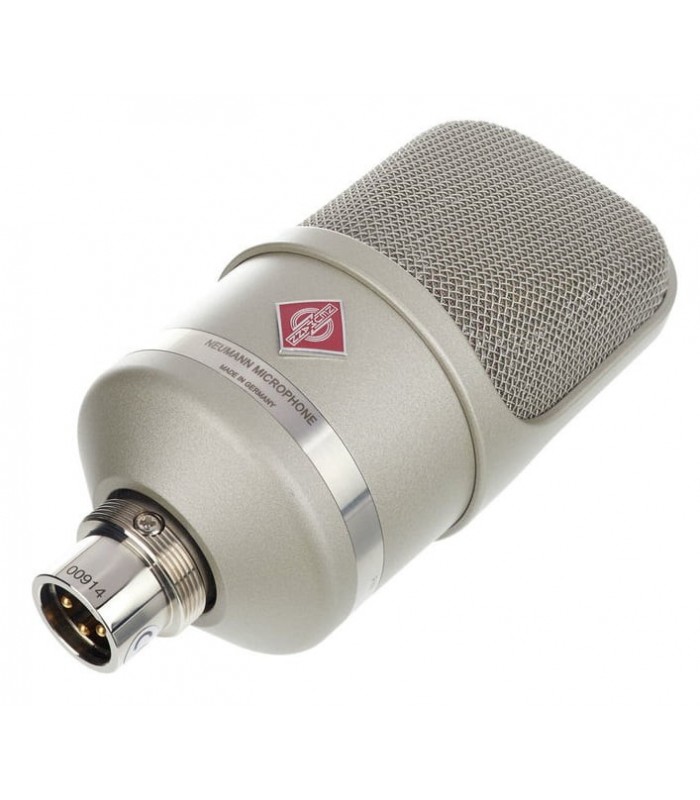

The nickel Neumann TLM 107 is a high-quality, flexible large diaphragm condenser microphone with five selectable polar patterns that is designed to accommodate a wide variety of professional studio, broadcast and demanding home recording applications.
The TLM 107 is engineered with a transformerless design that permits a high degree of linearity and a large dynamic range. Featuring selectable omnidirectional, wide angle cardioid, cardioid, hypercardioid and figure-8 polar patterns, this microphone is suitable for a wide range of miking techniques and configurations.
The mic also features -6dB and -12dB pads that can be engaged for recording louder sound sources such as brass or guitar amplifiers. Additionally, it has selectable high-pass filters at both 40 Hz and 100 Hz for filtering out unwanted low frequencies to save you time when mixing.
- Low self-noise of 10 dB-A
- Maximum sound pressure level of 141 dB SPL, can be increased to 153 dB SPL with pad
- Low cut and pad are controlled via navigation
- Pad and low cut status displayed by LED
- Illuminated polar pattern display
- Indicator light displays are turned off automatically after 15 seconds
Operating Principle | Pressure Gradient |
Transducer | Condenser |
Polar Pattern | Cardioid, Figure-8, Hypercardioid, Omnidirectional, Wide-Angle Cardioid |
Pattern Selection | Switched |
Frequency Range | 20 Hz to 20 kHz |
Signal to Noise Ratio | 72 dB CCIR 84 dB A-Weighted |
Equivalent Noise Level | 22 dB CCIR 10 dB A-Weighted |
Maximum SPL | 141 dB SPL |
Pad | -6 dB -12 dB |
THD | < 0.5% |
Impedance | 50 Ohms |
Load Impedance | 1000 Ohms |
Sensitivity | 11 mV/Pa at 1 kHz into 1 kOhms |
