Kramer C-HM/HM/PICO/BK-1 - Slim High-Speed HDMI Cable with Ethernet - Black - 0.3m
Kramer Slim High-Speed HDMI Cable with Ethernet - Black - 0.3m
Kramer's C-HM/HM/PICO is an ultra-slim high-speed HDMI cable with Ethernet. The slim HDMI connector and narrower cable diameter fits more easily into tight spaces behind televisions or in a cabinet. It supports resolutions up to 4K@60Hz (4:4:4).
- Max Resolution - 4K@60Hz (4:4:4).
- Quality Performance - Kramer’s new HDMI cables provide an uncompressed digital link between consumer electronics equipment such as DVD players, set-top boxes and audio/video monitors such as plasma display screens for high-definition TVs.
- High-Quality Connectors - Slim HDMI connector heads 16.0 mm wide and 8.0mm thick (5/8" wide and 5/16" thick).
- Space Saving - A tighter bend radius combined with the low-profile connector can save up to 1" of depth behind the equipment.
- HDMI Support - Signals up to ultra-HD 4K, HDMI Ethernet Channel, 3D, x.v.Color™, Deep Color, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, CEC.

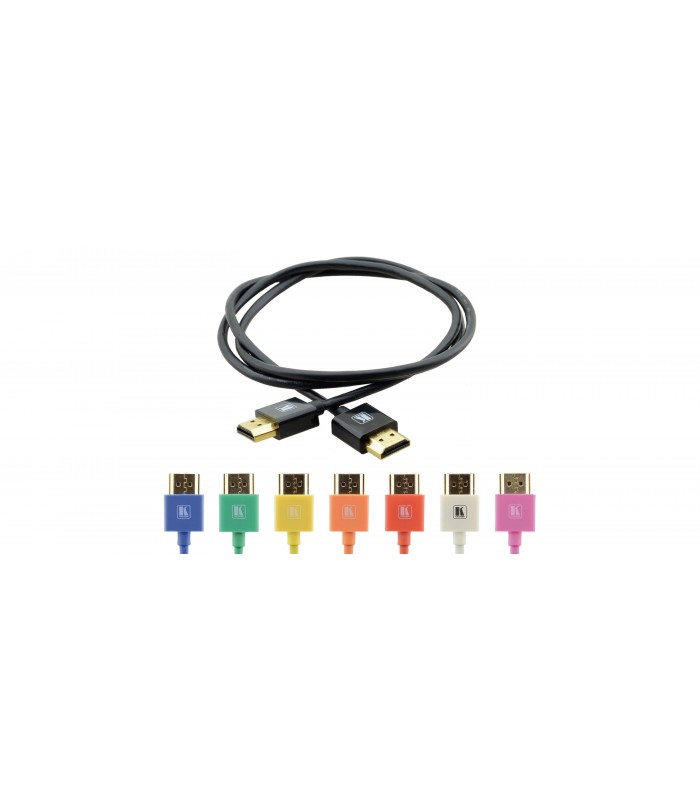

- Available Colors - Black, blue, green, yellow, orange, red, pink and white.
- Varied Selection of Lengths - Available in versions of 0.3 to 3.0m (1, 2, 3, 6 and 10ft).
|
Specifications |
|
VIDEO |
Max Resolution for 3-6ft (0.9-1.8m) lengths: 4K60Hz (4:4:4) Max Resolution for 10ft (3m) length: 4K60Hz (4:2:0) Max Data Rate for 3-6ft (0.9-1.8m) lengths: 18Gbps (6 Gbps per channel) Max Data Rate for 10ft (3m) length: 10.2Gbps (3.4 Gbps per channel) HDMI Support: HDCP 2.2, EDID, CEC, HDR–10, HLG, Dolby Vision |
|
AUDIO |
Supported Audio Formats: Dolby Digital Plus, Dolby TrueHD, DTS–HD Master Audio™, DVD Audio, SA–CD |
|
PHYSICAL |
Connectors: 2 Male HDMI Type A, 24K gold–plated connector Bending radius: 36mm |
|
CONDUCTORS |
Diameter: 34AWG(7/0.06) Material: Tinned Copper |
|
SCREENING |
Type: Triple shielding |
|
JACKET |
Material: PVC Available Colors: Black, blue, green, yellow, orange, red, pink and white Diameter: 3.6± 0.15mm |
|
ELECTRICAL |
Temperature Rating: 80⁰C Voltage Rating: 30V Conductor Resistance: 34AWG–1.08KΩ/KM MAX. at 20℃ |
|
REGULATORY |
Rating (NEC/UL/CSA): VW–1 |
-
