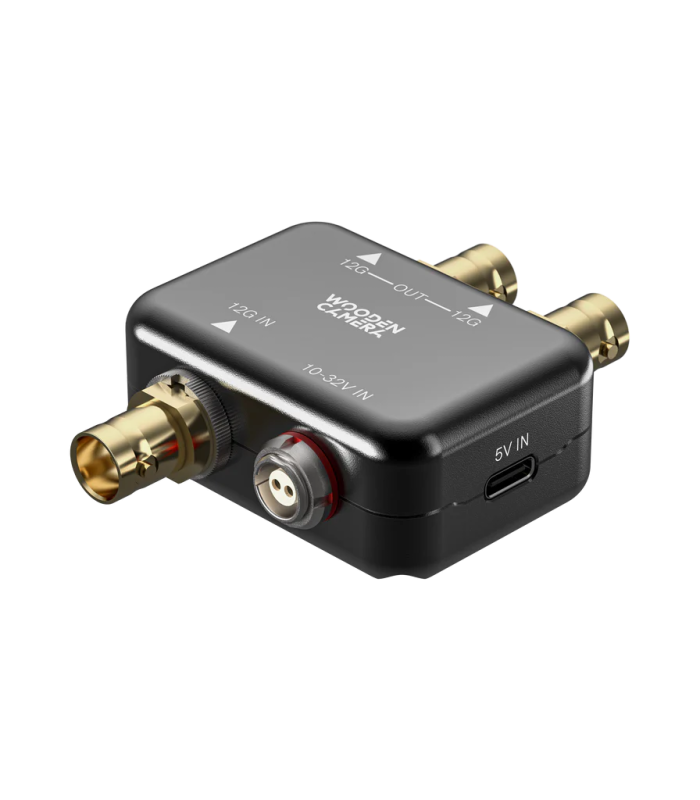

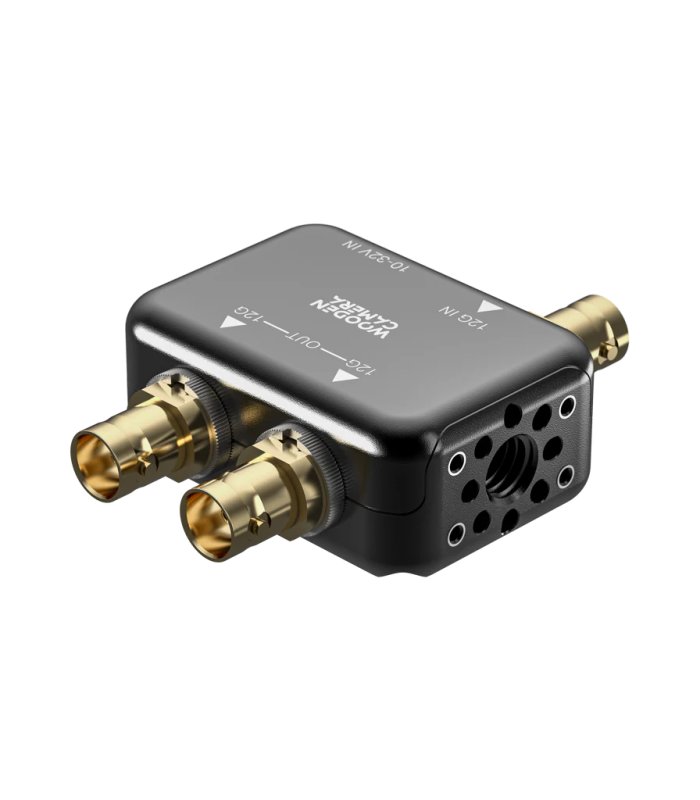

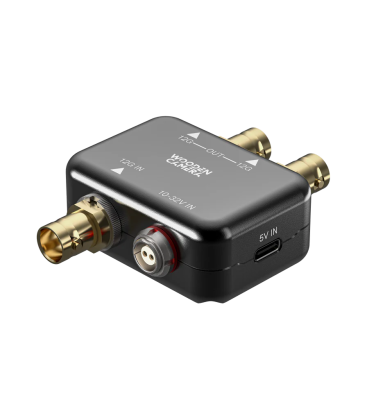

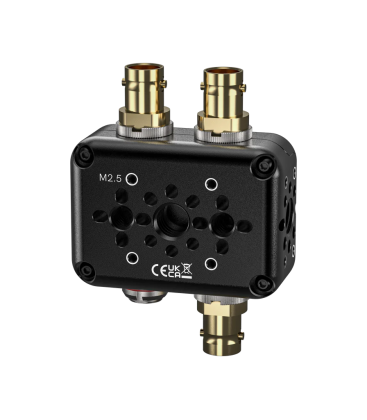

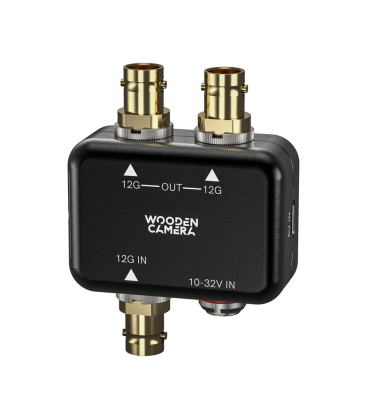

Wooden Camera WC-A00926 - 4K 12G-SDI Distribution Amplifier (1x2)
Wooden Camera WC-A00926 - 4K 12G-SDI Distribution Amplifier (1x2)
Wooden Camera WC-A00926 - 4K 12G-SDI Distribution Amplifier (1x2)
Wooden Camera WC-A00926 - 4K 12G-SDI Distribution Amplifier (1x2)
Nuovo

Wooden Camera WC-A00926 - 4K 12G-SDI Distribution Amplifier (1x2)

1081461

Nuovo

Designed for Broadcast/Live Environments

Nostro prezzo :

363,07 CHF


392,48 CHF (IVA incl.)

Rectangle
Guarantee: garantie Visuals Guarantee 24 Months
In-house aftersales service: update, repair and backup.

Availability: clock

Generalmente spedito entro 8 o 12 settimane


Order now and we will deliver as soon as possible,
or please contact us on 022 561 07 07 for other arrangements.

- +

1081461
Dettagli

Key Specs



Inputs 1 x BNC (3G-SDI / 6G-SDI / 12G-SDI / HD-SDI) Male
Embedded Audio SDI Input
Outputs 2x BNC (3G-SDI / 6G-SDI / 12G-SDI / HD-SDI) Male
Video Format SDI (10-Bit), DCI 4K: 60 fps, UHD 4K: 60 fps


Interfaces



Inputs 1 x BNC (3G-SDI / 6G-SDI / 12G-SDI / HD-SDI) Male
Embedded Audio SDI Input
Outputs 2x BNC (3G-SDI / 6G-SDI / 12G-SDI / HD-SDI) Male
Other I/O 1x USB-C Input


Standards



Reclocking Yes
HDR Support Yes
HDCP Support No
EDID Support No


Transmission



Video Format SDI (10-Bit), DCI 4K: 60 fps, UHD 4K: 60 fps


Power



Power I/O 1x LEMO 2-Pin (10 to 32 VDC) Input
ESD Protection Yes


General



Certifications CE, UKCA
Material of Construction Metal
Dimensions 2.8 x 2.1 x 0.9" / 71.7 x 54.0 x 23.0 mm
Weight 1.87 oz / 53.07 g
