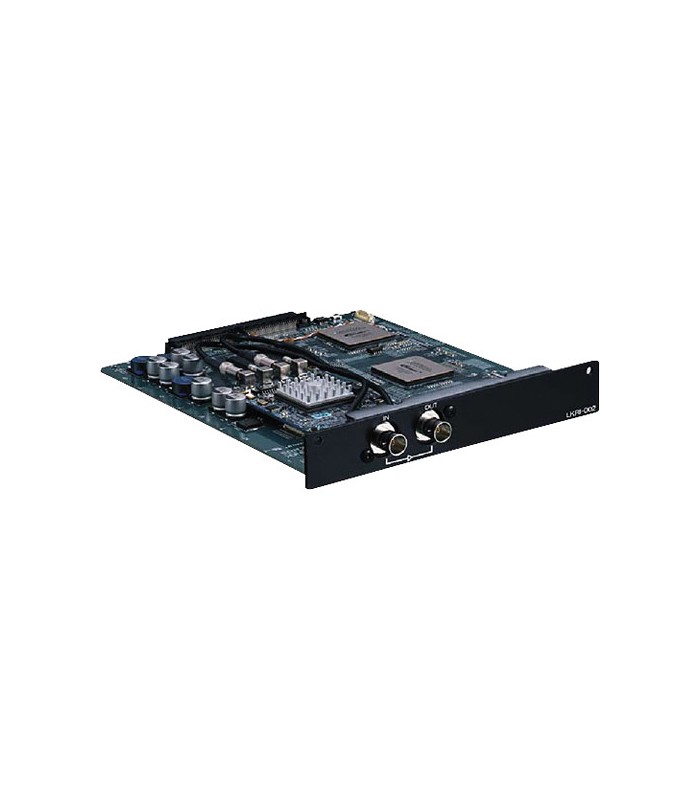

Sony HD-SDI Input Board for 4K SXRD Digital Projector
The LKRI-002 HD-SDI Input Board for 4K SXRD Digital Projector from Sony is designed to be mounted onto Sony projectors to input signals from external equipment. The LKRI-002 accepts SMPTE 259M SD digital 525 or 625 line video by inputting the HD component serial or D1 serial digital signal from an HDCAM recorder. The board outputs data via the BNC connector and loop-through output.
- Supports HD-SDI and SD-SDI inputs
- Input board accepts SMPTE 259M SD digital 525 or 625 line video
- BNC input and output connectors
Sony HD-SDI Input Board for 4K SXRD Digital Projector
The LKRI-002 HD-SDI Input Board for 4K SXRD Digital Projector from Sony is designed to be mounted onto Sony projectors to input signals from external equipment. The LKRI-002 accepts SMPTE 259M SD digital 525 or 625 line video by inputting the HD component serial or D1 serial digital signal from an HDCAM recorder. The board outputs data via the BNC connector and loop-through output.
- Supports HD-SDI and SD-SDI inputs
- Input board accepts SMPTE 259M SD digital 525 or 625 line video
- BNC input and output connectors
|
Specifications |
|
Input |
HD-SDI: 1.485 Gbps |
|
Output |
1 x BNC |
|
Quantization |
10-bit |
|
Dimensions (W x H x D) |
6.6 x 1.1 x 7.9" (16.8 x 2.8 x 20.1 cm) |
|
Weight |
12 oz (350 g) |
-
